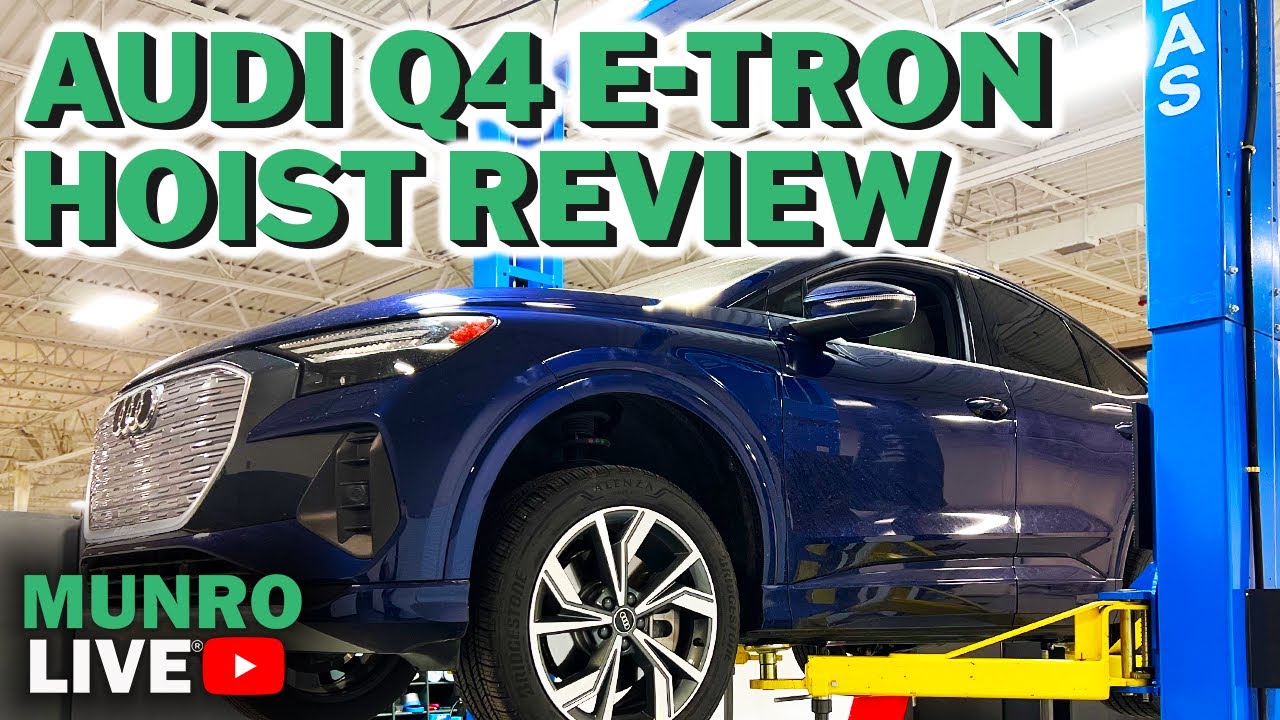

Hoisted high in the Munro shop, the Audi Q4 e-Tron reveals the truth beneath its sleek Sportback body — a premium EV built on Volkswagen’s MEB platform but refined with Audi’s own engineering fingerprints. For automotive engineers, EV enthusiasts, and investors, it’s a masterclass in tradeoffs, cost control, and design nuance. Every bracket, fastener, and cooling line tells a story of how Audi balances performance, manufacturability, and brand identity on shared architecture.
Shared Platform — Unique Execution
The Audi Q4 e-Tron Sportback Prestige rides on the same Volkswagen MEB platform as the ID.4, yet it features several notable variations. One unexpected discovery was the machined flats and tapped holes on the front knuckle — likely provisions for an optional front-mounted electronic parking brake (EPB). This represents additional machining and material costs, suggesting that Audi has prepared for multiple regional or variant-specific configurations.
The front structure employs a stamped steel cradle with aluminum crossmembers, steel lower control arms, and aluminum knuckles in a traditional MacPherson strut layout. The stabilizer bar and dual-piston sliding calipers round out a setup that is familiar, serviceable, and cost-conscious.
Crash Energy Management
Audi’s approach to small overlap rigid barrier (SORB) performance involves long crush cans mounted to the primary load beams. While their placement appears slightly inboard of the 25% overlap zone, the design leverages the subframe and “shotgun” structures to channel crash loads. This indicates an emphasis on structural efficiency without adding excess reinforcement in areas less likely to see peak impact forces.
Thermal Management and Packaging
Under the hood, the Q4 uses a high-voltage CO₂ heat pump system to manage cabin climate and battery temperature. The compressor, condensers, and valving show careful routing to keep vulnerable lines out of common impact paths. A stamped steel crossmember shields key components from road debris.
However, the thermal system reveals mixed materials and connection strategies — EPDM hoses with constant-tension clamps, PA12 lines, and wire-band connections — hinting at multiple suppliers or assembly sequence constraints. From an engineering standpoint, standardizing hose and connector types could reduce complexity, improve assembly efficiency, and simplify serviceability.
The Hidden Costs of Complexity
Every additional bend in a line increases flow resistance; every extra connector adds weight and potential leak points. Over time, these small inefficiencies accumulate, requiring larger pumps and more energy to move thermal fluids. In cold climates, this can directly reduce winter driving range. As Munro’s team notes, optimizing fluid routing is as much about operational efficiency as it is about engineering cleanliness.
Fastening Strategy and Weight Savings
One standout feature is Audi’s use of lightweight triple-square fasteners with reduced head mass. While each bolt saves only grams, the aggregate savings across the vehicle are meaningful. This type of incremental optimization mirrors racing practices, where titanium fasteners and composite components are used — though at a much higher cost.
Steering Design
The Q4 employs a true rack-and-pinion steering system, eschewing belt-driven EPS units for direct gear-to-gear input. This can improve steering feedback and durability. Audi mounts the steering rack directly on top of the cradle, integrating protection without adding separate shielding structures — a cost and weight benefit.
Battery Pack Innovation
The battery pack features brazed, stamped aluminum cooling plates with serpentine coolant channels. This design eliminates dozens of hoses and connectors found in conventional packs, reducing part count and assembly complexity. Service holes in the pack’s lower cover are recessed to minimize aerodynamic drag and noise — a small but telling sign of attention to detail.
Rear Suspension and Braking Choices
At the rear, the Q4 uses an isolated multi-link suspension with hydroformed tubular cradle sections for strength and weight reduction. Forged aluminum links are used in critical clearance areas, while other links remain stamped steel to save costs. The stabilizer bar links eliminate upper ball joints through smart geometry, removing parts without sacrificing performance.
Perhaps the most surprising choice for a $60,000 EV is the use of drum brakes in the rear. Audi has styled them to mimic rotors externally, improving aesthetics. From an engineering perspective, drum brakes can offer longevity and reduced maintenance, particularly when regenerative braking handles most deceleration, but they run counter to expectations for a premium model.
Smart Part Reuse
Audi integrates multiple functions into single components — such as using one plate as both a washer and sensor bracket — reducing part count and assembly steps. This “design for manufacturability” approach lowers costs without compromising performance.
Engineering Takeaways
The Audi Q4 e-Tron Sportback’s underbody reveals a philosophy of measured refinement rather than radical reengineering. Audi makes selective use of premium materials and lightweight strategies while relying on proven, cost-effective architectures. This results in a vehicle that feels familiar to service technicians yet incorporates enough innovation to remain competitive.
Key lessons for engineers and OEMs:
-
Provisions for future variants can be built in without immediate functional use — but at a cost.
-
Crash energy strategies can balance safety requirements with weight and space efficiency.
-
Thermal routing standardization improves assembly, service, and system efficiency.
-
Lightweight fastening strategies offer cumulative gains with minimal cost impact.
-
Integrated component functions save parts and simplify manufacturing.
Conclusion
The Audi Q4 e-Tron hoist review demonstrates how shared platforms can still deliver brand-specific engineering signatures. The Q4’s design choices reflect a balance between cost, performance, and manufacturability, offering insights into how automakers adapt common architectures to meet distinct market positions.
For engineers, these underbody observations underscore the importance of small, incremental decisions in shaping vehicle efficiency and serviceability. For enthusiasts and investors, they highlight the interplay between premium branding and practical engineering.
