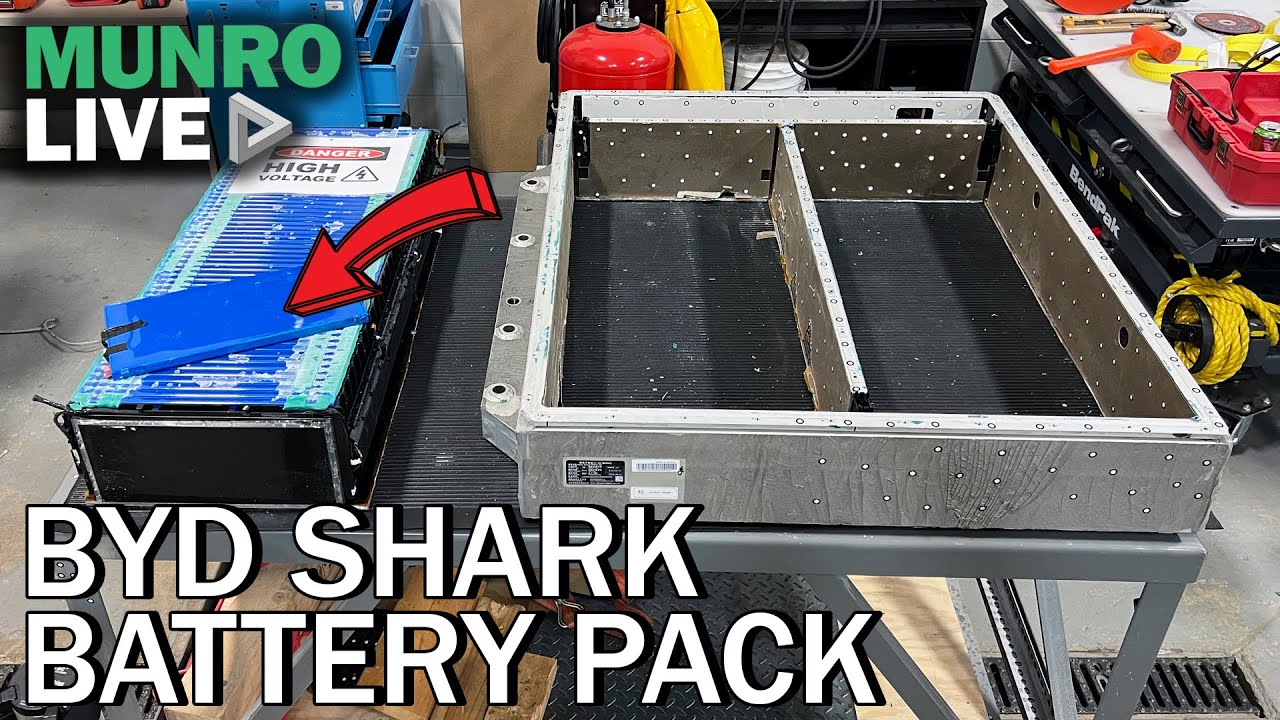

Electric vehicle innovation is charging forward, and nowhere is that more evident than in BYD’s Shark hybrid. Munro & Associates recently conducted a deep dive into the BYD Shark battery pack, revealing fascinating and unconventional design decisions. This teardown provides an expert analysis of the battery pack’s structure, cooling system, materials, and assembly strategy. What they uncovered—particularly the AC top-cooled blade cells—offers powerful insights into BYD’s engineering priorities and manufacturing style.
AC Cooling: A Top-Side Twist
One of the most eye-catching design elements of the Shark battery pack is its air conditioning (AC) cooling strategy. While most EV battery designs opt for bottom cooling—such as Tesla‘s intercellular coolant channels—BYD flips this convention on its head. Literally. The Shark’s battery is top-cooled.
The battery cover reveals a complex network of channels where refrigerant flows, pulling heat from the top side of the pack. BYD departs from the BMW-style top-cooled systems seen before and adds a unique layer to thermal management. The choice may be driven by packaging constraints or serviceability priorities, but it’s clear BYD is comfortable innovating in areas most OEMs play safe.
Blade Cells: Lean, Long, and Laser-Welded
At the heart of this battery system are BYD’s proprietary “blade cells.” These are long, narrow lithium iron phosphate (LFP) cells measuring approximately 3/8 of an inch thick. Each module in the Shark houses 57 of these cells, contributing to a total of 144 cells, providing 30 kWh of energy, 365 volts DC, and 81 amp-hours.
The cells are connected in series via laser-welded bus bars that snake from the positive terminal of one cell to the negative of the next. These robust welded joints contribute to structural integrity and ensure reliable current flow, though they also make disassembly more difficult.
To access the cells, Munro’s team had to remove a dense grid of insulating plastic covers and pry through industrial-grade adhesives—a process they described as particularly grueling. BYD glued the cells so tightly into the pack housing that the Munro team had to saw through the bottom of the battery box to extract them.
Structural Adhesives and Thermal Control
BYD clearly prioritizes sealing and protection. A vibrant green sealing compound lines the battery’s perimeter and even crosses its center, enhancing both mechanical strength and environmental resistance. In a clever touch, BYD encapsulated the fastener heads with sealant to prevent moisture ingress—a move that screams durability but complicates serviceability.
The Shark battery isn’t just cooled—it’s also heated. An electric grid installed above the battery cells provides top-side heat, enabling more effective cold-weather operation. This dual thermal strategy, combining active cooling and heating, speaks to BYD’s ambition to position the Shark in global markets where temperature extremes are common.
A Ventilated and Redundant Housing
The pack includes two external vents—likely safety features to handle pressure buildup in the event of cell venting or thermal runaway. Foam padding lines the internal edges of the battery module, cushioning the pack against vibration and road stress. The AC manifold itself integrates directly into the top cover, with ports that press-fit into the main housing block, simplifying assembly but likely hindering future repair.
Also notable is the Shark’s use of both high-voltage and DC ports, which may indicate a multi-modal energy flow design. Whether for regenerative braking, auxiliary power, or bi-directional charging, the layout points to versatile use cases.
Integrated BMS: Tab-Based Monitoring
Where many OEMs run wire looms to a centralized battery management system (BMS), BYD embeds its BMS tabs directly into the ends of the cells. The tabs route through the pack using a clever flex circuit design that connects one side of the battery to the other via internal bars and conductive tabs.
This approach eliminates excess wiring, potentially reduces cost, and improves robustness. The BMS ensures that all cell voltages remain balanced—discharging overcharged cells to match the lowest one. This protects cell longevity and maintains efficient energy delivery.
However, this compact, integrated approach also makes diagnostics and replacement more difficult. Tabs are harder to test or swap than wires, meaning this pack is likely not intended to be serviceable at the component level.
Assembly Challenges and Durability Tradeoffs
Munro’s teardown revealed just how difficult the Shark pack is to disassemble—largely due to glue. The adhesives used inside are stubborn and unforgiving. This suggests that BYD chose rigidity and protection over repairability. To remove the cells, the team had to cut the steel bottom of the battery enclosure with a metal saw—working within millimeters of critical cell structures.
The housing itself provided little clearance, further indicating a design optimized for compactness rather than easy maintenance. It’s a tank of a battery—overengineered in some respects, but highly robust.
Cost vs. Capability: Lean Design or Overbuilt?
From a lean design standpoint, the Shark battery doesn’t cut corners—but it may be cutting into serviceability margins. Adhesive overuse, fused fasteners, and a fully encapsulated design suggest this pack was built with durability and cost in mind, not field repair.
That said, the innovative BMS integration and thermal solutions are compelling. BYD balances simplicity in electrical layout with complexity in assembly. It’s a high-volume strategy designed for scale—once you build it, you may never need to touch it again.
BYD Shark Battery Analysis Takeaways
- Top-cooled batteries are rare. BYD’s choice could redefine thermal strategies in future hybrids.
- Blade cells offer high energy density in a lean format, but complicate teardown due to their welded bus bars and dense adhesive use.
- Integrated BMS with tab-based monitoring shows clever design thinking that reduces wiring and increases structural clarity.
- AC manifolds built into the cover simplify assembly but trade off field serviceability.
- Overbuilt adhesive structure enhances safety and durability—but requires destructive disassembly.
Final Thoughts: Shark Shows Its Teeth
The BYD Shark’s battery pack demonstrates that EV innovation isn’t limited to performance and range. Structural design, thermal control, and manufacturability are equally critical—and often overlooked—components of electric vehicle success.
BYD has taken bold, unconventional steps that signal a commitment to reliability, efficiency, and mass production—even if that means frustrating teardown engineers. For EV professionals and OEMs alike, the Shark is a case study in next-gen hybrid battery strategy.
