BYD Shark Interior Teardown

The BYD Shark center console teardown offers a rare glimpse into how design, cost, and manufacturing decisions come together in a modern electric vehicle. While time was limited with the vehicle, the Munro team managed to uncover crucial engineering insights across the center console, front seats, and fascia. For automotive engineers, EV analysts, and lean design enthusiasts, this analysis reveals the trade-offs between aesthetic choices, structural efficiency, and cost reduction in BYD’s latest plug-in hybrid pickup.

Multi-Piece Ducting and Console Mounting: Missed Integration Opportunity

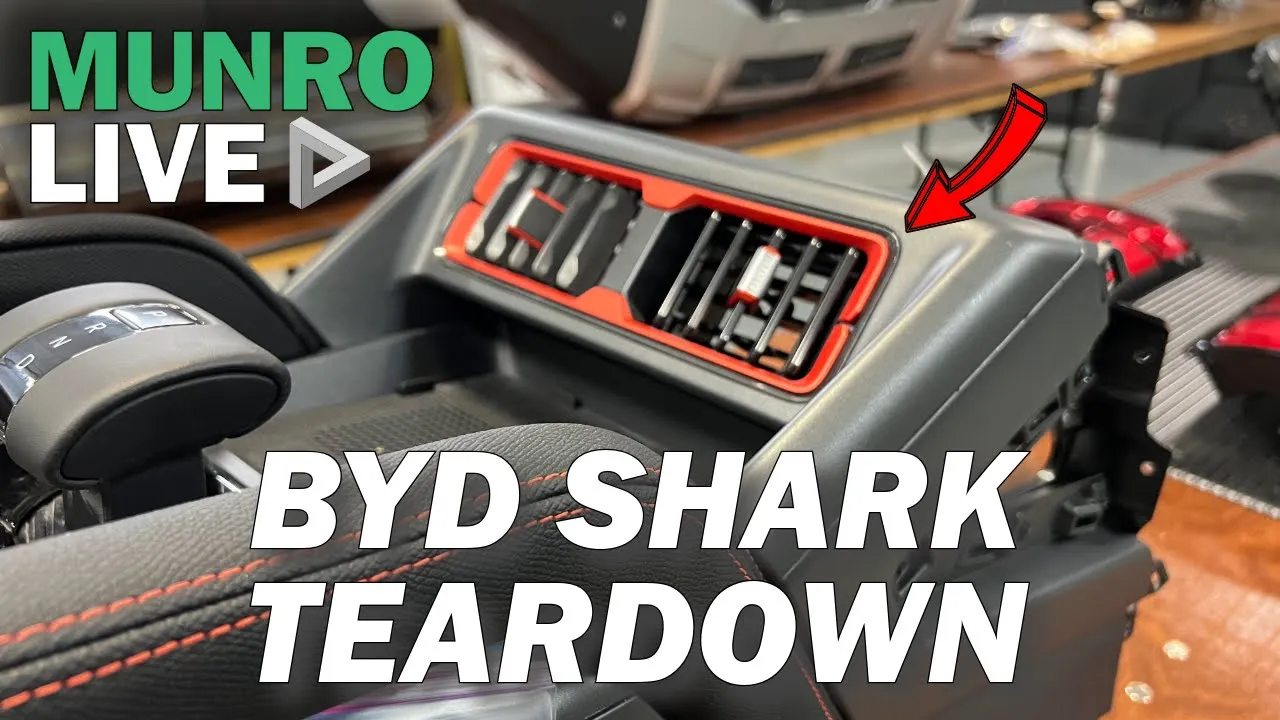

The interior reveals that the HVAC air ducts are routed through the center console toward the rear seats. Instead of using a single blow-molded duct, the system consists of multiple riveted plastic components. This approach introduces assembly complexity without providing the end customer much added value.

Likewise, the console’s internal mounting structure shows room for simplification. It relies on separate brackets for stability rather than making the decorative A-surface structural. In higher-efficiency designs, the visible part of the console often doubles as the load-bearing component, eliminating unnecessary plastic substructures and reducing both material and labor costs.

Hingeless Latch Design: A Cost-Saving Innovation

One of the more elegant decisions in the BYD Shark’s interior is the lid hinge design. Rather than using a conventional latch mechanism involving injection-molded components, springs, and fasteners, the Shark utilizes a tension-based hinge to hold the armrest in place. This eliminates a subassembly that typically adds cost, weight, and potential quality control issues.

By omitting a latch, BYD not only saves on component cost but also reduces labor during final assembly—without sacrificing user experience. From a lean design perspective, this is a commendable move that offers cost savings without affecting perceived value.

Complexity in Styling: Decorative Choices That Add Cost

The teardown reveals multiple styling decisions that introduce unnecessary complexity. For instance, the reddish-orange trim pieces on either side of the console are not symmetrical, despite being nearly mirror images. This requires two different molds and creates more tracking on the assembly line. Similarly, the cupholder openings are asymmetrical, further complicating the production process.

These types of design choices—while aesthetically pleasing—have a measurable impact on cost and assembly logistics. When repeated across the vehicle’s architecture, these inefficiencies accumulate.

Hyundai and Kia vs. BYD: A Study in Overdesign

The team draws a compelling contrast between BYD’s relatively efficient center console design and the overly complex assemblies found in Hyundai and Kia vehicles. In one example, the Hyundai Ioniq 5 uses a hinge with redundant latching and spring mechanisms—components that add cost but don’t necessarily improve user experience.

Where BYD shows restraint, Hyundai and Kia often lean into overengineering. While this may be defensible in luxury segments, it can be difficult to justify in cost-sensitive vehicles where the added complexity isn’t visible or valued by the customer.

Injection Molding vs. Painting: Cost Tradeoffs at Low Volume

A key insight from the teardown involves the Shark’s use of painted plastic components. While certain injection molding resins can produce metallic finishes without paint, switching between multiple colors in a low-volume production environment (e.g., 50,000 units per year) is impractical. Every color change requires extensive purging of resin—sometimes over 100 pounds per changeover—which wastes material and time.

For OEMs with limited volume, painting offers a more cost-effective path to visual variety. However, it introduces its own fixed costs in the form of paint line investments. BYD seems to have balanced this trade-off by opting for painted injection-molded parts, which likely saves money in small batch runs.

Painted Seat Components: A Cultural and Market-Driven Decision

The seat teardown reveals another cultural divergence in vehicle design. In the Shark, even the hidden metal components beneath the seats are painted—something rarely seen in U.S.-built vehicles. The reasoning? In certain markets, secondary buyers scrutinize hidden areas for signs of rust, using them to negotiate down prices.

While this adds cost, it reflects a customer-centric design philosophy attuned to market expectations in Latin America or export regions. Whether that value justifies the cost depends on how critical the secondary market is for the vehicle’s total lifecycle value.

Bracket Redundancy: Elimination Targets for Lean Engineering

Two seat brackets stand out as candidates for elimination. One merely supports a wire harness that could have been directly attached to the seat pan. The second supports a blower duct for ventilated seats. Munro compares this to Ford’s approach, where blowers are integrated directly into the foam or seat module, eliminating both bracket and duct.

For companies pursuing lean manufacturing, these components are low-hanging fruit for cost and weight reduction. If the function can be absorbed elsewhere in the system—such as directly mounting into foam or utilizing fewer duct paths—eliminating such hardware is a win.

Fascia Design: Smart Separation of Structure and Style

The Shark’s front fascia also shows thoughtful manufacturing choices. Instead of molding structural ribs into the visible surface—which can result in unsightly paint distortions—BYD welds reinforcement components behind the fascia. This approach supports structural needs while allowing clean, unblemished A-surfaces.

Welding separate components also reduces tool complexity and cycle times for injection molding. If a design change is needed, only the smaller sub-tool must be updated. This modularity lowers cost and increases manufacturing flexibility—crucial for markets where updates or variants may be introduced mid-cycle.

What vs. How: BYD’s Design Priorities

Throughout the video, the Munro engineer emphasizes the difference between “what” the customer sees and “how” the vehicle is made. The BYD Shark may not present as flashy or overengineered on the surface, but the choices underneath reflect strong lean manufacturing principles—at least in several key areas.

Simplified hinges, restrained console structures, and modular fascia construction all contribute to a vehicle that may be more profitable per unit—without compromising core functionality or aesthetics.
