The BYD Shark, China’s new entry in the mid-size hybrid truck space, has drawn significant attention. And not just for its unique hybrid powertrain. Its bold and arguably excessive engineering choices are evident in its frame and structure. In this post, we unpack the expert teardown insights shared by Munro & Associates, focusing on the frame design, powertrain layout, and battery integration. The goal: determine whether BYD’s innovations represent true progress or unnecessary complexity.

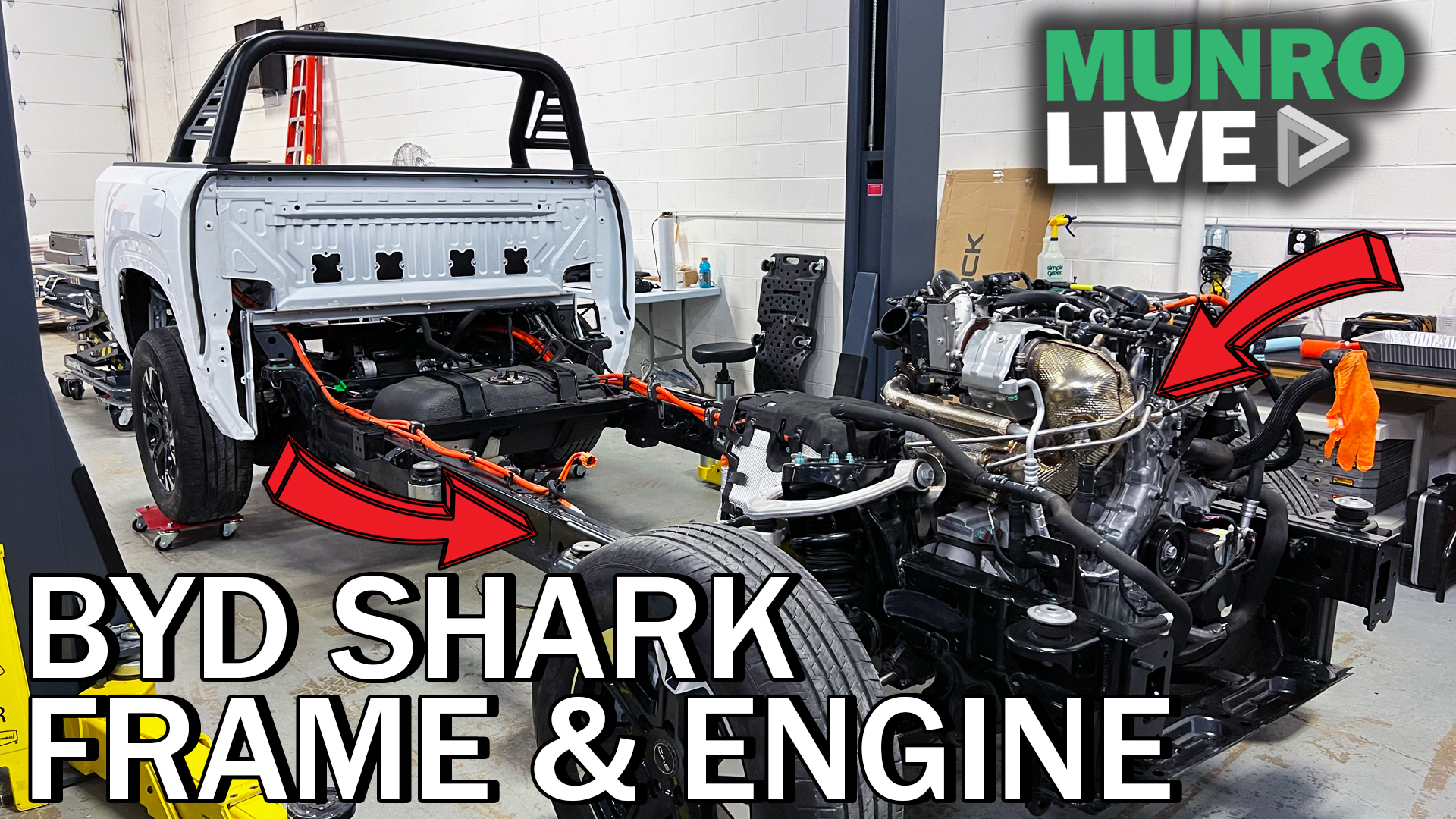

A North-South Powertrain in a Mid-Size Truck?
One of the first unusual aspects noted by the Munro team was the Shark’s north-south engine orientation. This is atypical for turbocharged four-cylinder engines driving hybrid systems, which are usually arranged east-west. BYD equips the Shark with a 1.5L turbocharged four-cylinder engine.
It’s surprisingly large for a hybrid application where smaller three-cylinder or Atkinson-cycle engines are more common.
While the setup suggests potential reuse from other platforms, packaging constraints within the existing frame rails likely drove the decision. That alone raises questions about platform optimization for the Shark.
Even more puzzling is the function of a front-mounted pulley with no accessory drive. Sandy Munro speculates that it’s a reused part from other engine applications—possibly a sign that BYD prioritized simplicity in supply chain over part function or cost savings. “Complexity might cost more than the part,” Munro quips.
Series Hybrid With Highway Clutch Lockup
The Shark’s hybrid system is electrically driven, with the engine operating as a generator to charge the battery and drive the front wheels via an electric motor. There’s also a rear motor, making it effectively all-wheel-drive.
At low to mid speeds, it functions as a series hybrid, similar to the first-generation Chevy Volt. However, a planetary gearset and clutch allow mechanical engagement of the engine to the front wheels at highway speeds for improved efficiency.
This hybrid approach is clever—but arguably too complicated. As Munro notes, “For the money it takes to do that, I don’t really see the advantage.”
The Frame: Tank-Like Redundancy
Where the BYD Shark really breaks from conventional wisdom is in its structural frame. The Munro team, which includes veterans who’ve worked on military-grade vehicles, expressed shock at the sheer overengineering of the frame rails.
Though relatively small in cross-section, the Shark’s frame rails are packed with internal steel reinforcements. Through strategically placed “puddle welds,” BYD has added a second C-channel inside the main frame rails, creating unprecedented side impact resistance.
Why such beefy construction? The team speculates that BYD may be using the battery pack itself structurally—and in doing so, needed to guarantee crash protection. Still, the consensus is that it’s excessive. “You’d have to hit this with a tank,” Munro remarked.
This level of rigidity, while impressive, comes at a cost—both financially and in terms of weight. It’s not clear the added strength delivers meaningful real-world benefits in standard crash tests. It may simply be BYD’s way of overcompensating for unfamiliar regulatory environments in export markets like the U.S.
Structural Battery Integration and Protection
The Shark uses BYD’s proprietary Blade battery pack, known for its long-format cells and compact arrangement. The battery appears to be integrated into the structure of the vehicle rather than isolated in a separate housing. This contributes to structural stiffness but increases the engineering burden for impact protection.
The battery itself sits inside an aluminum box, surrounded by thick foam padding—so much so that one reviewer quipped they had “never seen this much padding in my life.”
The box is constructed from aluminum extrusions, glued and sealed for integrity. The design clearly excludes field service, reinforcing the view that this vehicle prioritizes durability over repairability.
Power Electronics and the DC Loop Dilemma
A notable quirk in the Shark’s electrical architecture is the distribution of DC power down both frame rails—creating a loop that could introduce unwanted inductance. It’s an odd packaging decision, seemingly made to accommodate space constraints rather than electrical optimization.
Instead of placing all power electronics up front, BYD placed some components like the DC-DC converter in the rear, forcing power to travel in a looped circuit. Munro suggests this might be a byproduct of copying legacy design patterns without rethinking the implications—what he calls the “Trojan horse” effect of bad engineering imitation.
Brake Line Spiral: A Smart Throwback
One area of innovation that earns praise is the spiral-formed brake line in the rear suspension. Instead of using expensive rubber hoses, BYD uses the geometry of the metal brake line itself to absorb motion and vibration—an idea borrowed from steam engine coil designs. While not new, it’s rarely seen in modern pickup trucks and offers cost and durability benefits.
Corrosion Protection and Material Choices
The Shark’s frame includes targeted corrosion protection via wax dips—similar to GM practices—but not uniformly applied. The truck also uses a steel gas tank, a rarity today. Manufacturers have largely replaced steel tanks with blow-molded plastic alternatives in Western automaking due to their tendency to leak and develop manufacturing defects.
BYD’s decision to stick with steel here raises durability concerns and potentially higher warranty costs in the long term, especially given the challenges of seam welding.
Rear Suspension and EDU Mounts: Overkill?
More overengineering shows up in the rear EDU cradle, which is both welded and bolted to the frame. The overly beefy structure holding the electric drive unit (EDU) prompts Munro to compare it once again to tank-grade engineering.
Though not fully visible, the rear suspension design strikes the Munro team as unprecedented—even baffling—for a vehicle of this size. The team promises more details once the bed is removed.
Final Verdict: Bold Choices, but At What Cost?
The BYD Shark is not a low-cost vehicle. The system delivers 430 horsepower and includes an estimated 31 kWh battery, positioning it more as a high-powered hybrid lifestyle truck than a practical utility vehicle.
From the complex hybrid drivetrain to the tank-like frame and odd power packaging, the Shark seems designed to impress—or overawe—rather than streamline.
While some choices, like the spiral brake line, show thoughtful engineering, others feel like overengineering for overengineering’s sake. It raises the question: are these innovations aimed at long-term durability, crash performance, or merely avoiding liability in unfamiliar global markets?
BYD Shark Frame Analysis Takeaway
The message to OEMs and engineers is clear: copy with caution. While the BYD Shark offers plenty of interesting ideas, not all are worth replicating. Smart design should balance performance, cost, and manufacturability—not just impress in teardown reviews.
