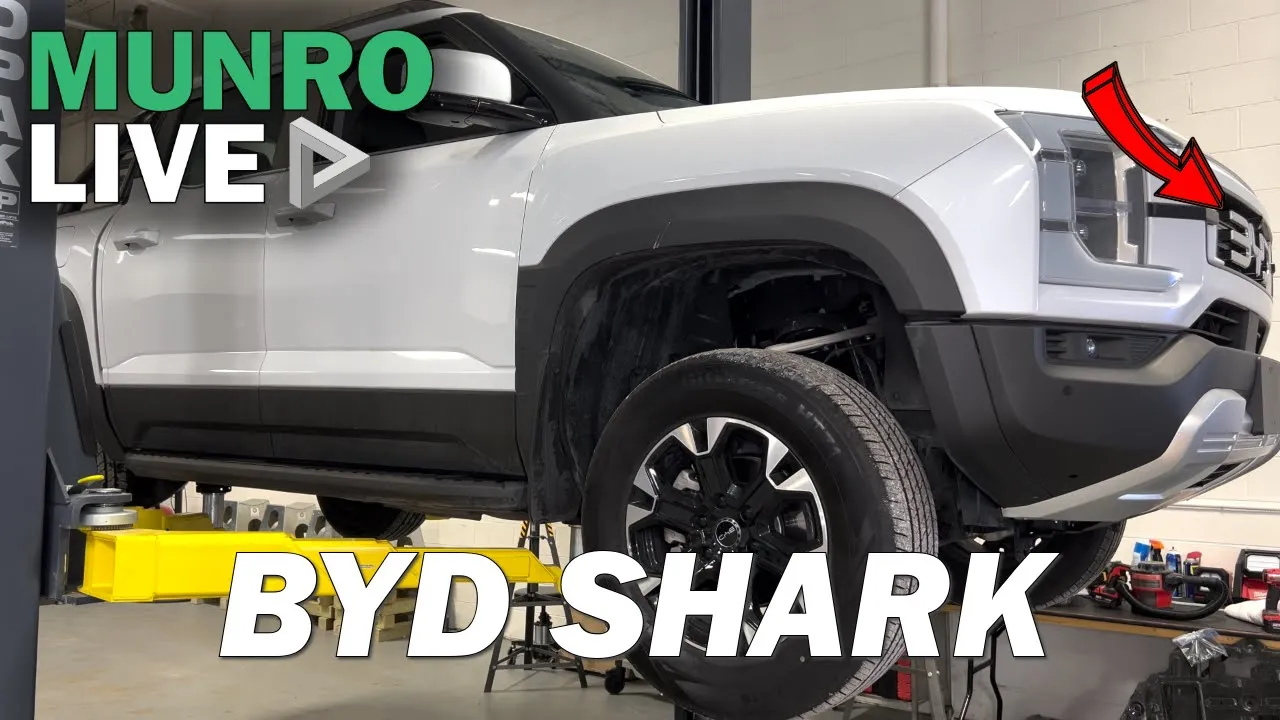

The BYD Shark teardown analysis reveals a hybrid pickup truck cobbled together with familiar components, clever packaging, and a few design quirks. At Munro & Associates, we put the Shark on the hoist and explored it under the hood. And what we found was a mash-up of parts-bin engineering, cost-conscious decisions, and a truck that’s not quite revolutionary. But it’s a truck that’s definitely instructive for those in the EV and hybrid vehicle space.
With the market for midsize hybrid trucks heating up, the BYD Shark attempts to carve out a space with a blend of electric range, combustion assist, and off-the-shelf modularity. Here’s what our team uncovered.
A Patchwork of Components and Strategies
From the start, the BYD Shark struck us as a “kit-bashed” vehicle. It doesn’t hide its hybrid identity—it’s a body-on-frame truck, primarily steel, with a traditional layout that’s been retrofitted with electrification. The front and rear modules seem to come from different design philosophies entirely.
The front module features a 1.5L turbocharged internal combustion engine and a traditional transmission, while the rear cradle system resembles a more modern, electrified subframe. Unlike the Ford F-150 Lightning, which uses integrated castings and a simplified structure, the Shark layers old-school truck design with newer electrification elements.
This truck likely borrowed liberally from BYD’s existing component catalog. Fuel filters are exposed, hoses are clamped rather than molded, and insulation appears to be an afterthought in several places. While it isn’t elegant, this parts-bin strategy might help BYD keep costs down. And, if successful, it can enter the market quickly, making it a smart lean manufacturing move for an emerging segment.
Hybrid Power, But Not Much Punch
One of the more surprising teardown outcomes of our BYD Shark analysis was just how underwhelming its performance felt. With a 1.5L turbo engine and twin electric drive modules, the Shark boasts an electric range of about 60 miles and a total range of 500 miles. That’s significantly more EV range than the Jeep 4xe, which comes in at about 14 miles. However, this added range doesn’t translate into power.
Eric, our test driver, described it as “one of the slowest EVs” he’s driven—underwhelming acceleration, even when gunned in a parking lot. Despite the decent battery size (roughly 30 kWh), the lack of refinement in power delivery is clear. This suggests the vehicle functions more like a range-extended EV than a performance hybrid, aligning more with the upcoming Scout model than with power-focused pickups like Rivian or the Lightning.
Unrefined but Spacious Packaging
The Shark’s underbody and component layout revealed another curiosity: abundant packaging space. Typically, EV engineers fight for every millimeter of clearance, but this vehicle has notable gaps between the battery, fuel tank, and exhaust systems.
This suggests the vehicle may have been originally designed for smaller, simpler platforms, and later adapted for this hybrid pickup. The front drive module, battery pack, and spring mounts all appear spaced further apart than what we’d expect from a tightly integrated platform. While this eases serviceability, it reflects a lack of optimization that costs efficiency in both weight and volume.
Suspension and Frame: Steel, Sturdy, But Dated
The BYD Shark uses a full box frame—a structurally sound choice but smaller than expected for a truck of this class. The suspension components are a mix: cast aluminum upper control arms (a cost-effective alternative to stamped steel) paired with overly complex lower geometries that raise questions about ride quality and manufacturing complexity.
The front suspension features clamshelled castings and a linear trailing arm setup. Compared to Ford’s simple, high-volume trailing arm design on the Lightning, this execution feels dated and overbuilt. That said, some elements, like the dual-function tow points and boxed shock tower structures, do show attention to durability and load management.
We also noted the truck’s shock tower execution resembled Toyota’s approach—boxing on the inside of the tower rather than the clevis-style seen in domestic trucks. Again, not revolutionary, but practical and familiar.
Grounding Strategy and Electrical Layout
One fascinating detail was the Shark’s electrical grounding layout. Instead of centralizing grounds like Toyota typically does, BYD dispersed grounding points across the chassis. While this can create complexity, it also builds in redundancy, potentially improving reliability in corrosive environments.
From an engineering risk perspective, this distributed grounding strategy suggests a focus on long-term system resilience, albeit at the cost of increased assembly effort and complexity.
Heat Management: Selective and Minimalist
BYD took a selective approach to heat shielding. Most thermal shielding is local to the exhaust system, with bands and tape applied only where deemed necessary. There’s little redundancy here. Intake and exhaust systems are placed on the same side of the engine bay, a layout that minimizes plumbing length but could raise thermal concerns in prolonged operation.
Also notable: the use of PET and heat-staked materials around the intake—modest solutions that get the job done without excessive cost. This shows a pragmatic approach to thermal management, balancing performance with cost.
Tailgate and Bed Execution: Functional, Not Flashy
The tailgate execution is reminiscent of older GM and Ford designs—no flashy split gates or fancy multi-function hinges, just a basic clamshell bed support and bolt-in panels. It’s cost-effective, if not competitive in the “tailgate wars” segment.
The bed is supported by stamped clamshells with some flexibility in Z-mounting to manage body line alignment. Interestingly, drain holes and bolt-in e-coat panels suggest some concern for corrosion protection, even if the execution isn’t as refined as that seen from legacy OEMs.
The BYD Shark: Teardown Analysis Takeaways
- Lean Parts Bin Strategy: BYD clearly prioritized time-to-market and cost control. This “use what you have” philosophy can accelerate product rollout but may sacrifice refinement.
- Space-Efficient but Unoptimized: The Shark’s generous underbody space makes service easy, but it hints at missed opportunities for weight reduction and aerodynamics.
- Underwhelming Performance: The hybrid powertrain offers good range but lacks punch. Future iterations will need to improve on-drive metrics to compete with Rivian or Ford.
- Engineering Redundancy: Dispersed grounding and boxed frames point to a robust, if outdated, durability mindset—especially for emerging markets.
- Nothing Revolutionary, But Educational: For teardown experts, the Shark offers a valuable look at how legacy design blends with EV components in a rapidly evolving segment.
Final Thoughts
The BYD Shark isn’t going to redefine the EV pickup landscape. But as a teardown subject, it offers real insights into how a company can use existing infrastructure to build something functional, if not flashy. It reflects pragmatic engineering choices aimed at hitting a price point and expanding market presence.
For engineers, investors, and enthusiasts alike, this teardown shows how global competitors like BYD are entering the electrified truck space—with a foot in the past and a toe in the future.
