In a revealing teardown session, the team at Munro & Associates uncovers unexpected and concerning design flaws beneath the surface of BYD’s electric pickup—the Shark. This BYD Shark teardown analysis exposes what Munro describes as immature engineering decisions and potential inefficiencies that could impact durability, efficiency, and performance. For engineers, EV enthusiasts, and investors, the breakdown offers not just critique—but lessons in lean design and platform optimization.
Compact Design Done Right… Almost

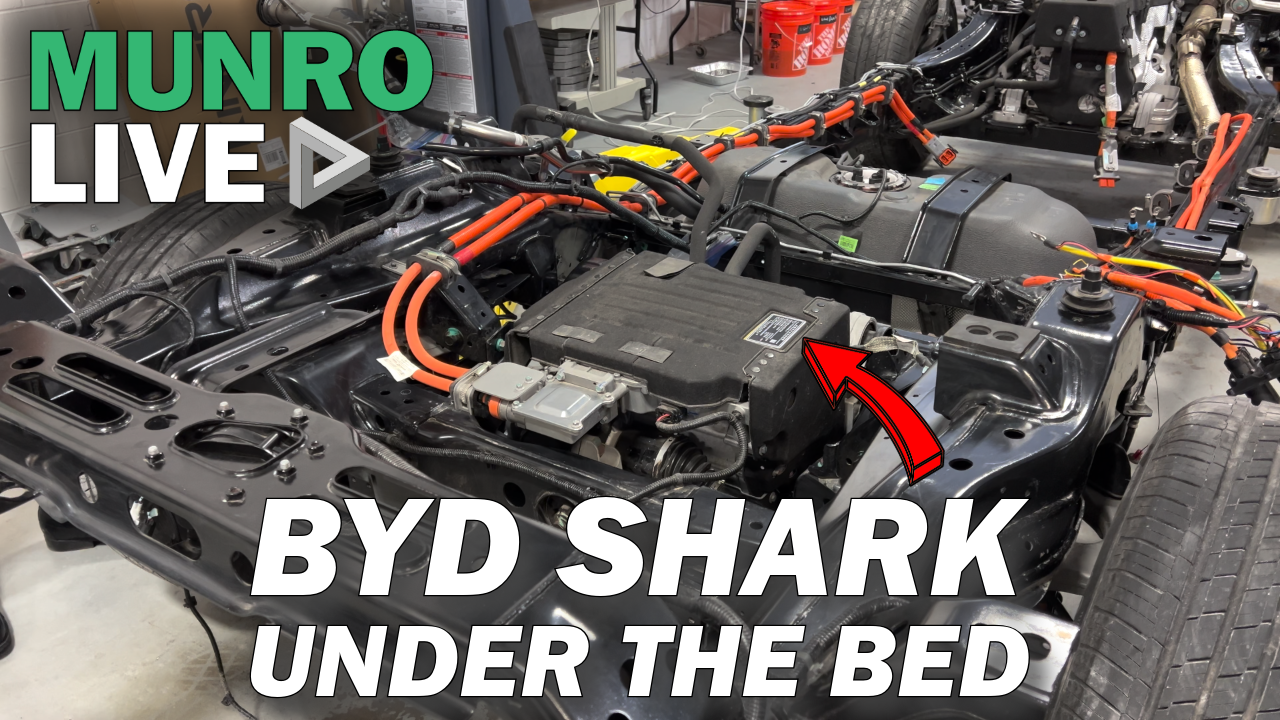

At first glance, the BYD Shark’s rear drive unit impresses. The inverter is neatly mounted atop the motor in a compact, water-cooled configuration tucked under the bed. This layout eliminates the need for oil plumbing and keeps power electronics close to the motor, which generally improves efficiency and simplifies maintenance.
However, the celebration is short-lived. A seemingly minor component—a ground strap—reveals a larger architectural oversight. This strap, bolted against a painted surface, likely indicates a late-stage design patch to address electromagnetic interference (EMI). While it may solve EMI issues by creating a ground loop to cancel noise, it introduces mysterious energy losses that drain battery power and reduce range.
The fix points to a reactive rather than proactive design approach. Had the high-voltage DC cables been routed along a single frame rail from the outset, the loop—and thus the EMI issue—could have been avoided entirely. This is a classic example of why Munro emphasizes early-stage architectural planning in lean product development.
Grounding Gone Wrong
The use of a bolt-on ground strap through painted material is especially problematic. Over time, corrosion or mechanical stress could compromise the connection, reintroducing EMI and destabilizing vehicle systems. Worse, it adds potential failure points to a mission-critical system.
From a Failure Modes and Effects Analysis (FMEA) perspective, this earns a top-tier red flag. It’s not just a quality control concern—it’s a reliability hazard that could impact long-term customer satisfaction.
Overbuilt, Overweight, and Overwhelming
The frame itself, revealed once the truck bed was removed, appears structurally exaggerated. Massive welded components and thick steel members evoke comparisons to military vehicles from the 1940s, not modern electric trucks. According to Sandy Munro, “immature” is the only word that captures the dissonance between BYD’s typical standards and what’s seen here.
The excessive use of thick-gauge steel (up to 2.5mm in places) and extensive arc welding adds unnecessary weight. While the welding quality is acknowledged as excellent, Munro stresses that such construction is antithetical to modern lean design principles. More weight means more energy consumption—another hit to range and efficiency.
Suspension Strategy: Over-Engineered or Misguided?
Part of this overbuilt appearance may stem from BYD’s choice of independent rear suspension. Unlike traditional leaf-spring setups seen in most trucks, BYD’s system requires numerous pickup points for upper and lower control arms. The result? Deeply contoured frame sections that resemble unibody construction rather than a ladder frame.
The rear suspension setup includes a unique combination: an upper A-arm, a spring link, and a trailing arm forming a lower triangle. While this achieves necessary geometry for ride and load control, it adds design complexity. The team likens the suspension design to something more common in high-end SUVs than workhorse pickups.
Unnecessary Weldments and Band-Aid Brackets
Further inspection reveals redundant weldments and curious bolted-on reinforcements. One subframe bracket is welded to the frame but is then reinforced with a bolted-on brace—possibly added post-prototype in response to real-world failures.
This “belt and suspenders” approach—welding and bolting—is typically seen in machine tools, not vehicle chassis. Its presence suggests uncertainty in structural integrity, or perhaps flawed finite element analysis (FEA) during simulation. Either way, it’s an expensive, weighty compromise that runs counter to scalable, modular design goals.
Ford Lightning Comparison: A Better Way
The Munro team contrasts BYD’s approach with the Ford F-150 Lightning, which uses a single large casting for the rear structure. This casting integrates suspension points and reduces complexity, welds, and weight. It’s a textbook case of platform optimization and casting efficiency in EV architecture.
Where BYD opted for dense weldments and bolted reinforcements, Ford streamlined their chassis using precision castings. The Lightning’s solution is more robust, cost-effective, and scalable.
Is the Shark Platform Reused?
Speculation arises that BYD may be overbuilding the Shark’s frame for future adaptation—perhaps for larger platforms like an F-350 equivalent. If so, the heavy-duty components could make sense. But absent official confirmation, the teardown team leans toward it being poor design rather than preemptive commonality.
Even if shared architecture is the intent, more elegant solutions exist. Modular design should allow scalability without over-engineering at every level. BYD’s decision to bulk up this truck without clear need may limit efficiency and hurt competitiveness in global markets.
Weld Quality vs. Design Quality
While Munro acknowledges the high-quality arc welds, the praise ends there. Modern EV manufacturing seeks to minimize welds in favor of castings, extrusions, and adhesive bonding. Welds increase thermal distortion risks, require post-processing, and complicate automation.
BYD’s arc weld-heavy frame design feels like a step backward—perhaps a legacy process held over from traditional ICE trucks. In the context of EVs, it’s an unnecessary burden.
A Missed Opportunity
BYD is no stranger to quality EV platforms. Their buses and commercial vehicles have earned a solid reputation for engineering excellence. That’s why this teardown was so surprising. Instead of a revolutionary design—or even an evolutionary one—what the team found was a bloated, outdated structure more suited to the last century than the next.
In an EV era driven by efficiency, integration, and modularity, BYD’s Shark shows signs of promising ideas held back by outdated execution.
Final Thoughts and Takeaways
- Ground strap misplacement introduces avoidable energy loss and reliability risks.
- Overbuilt frame components add cost and weight, reducing range and efficiency.
- Complex rear suspension may provide performance benefits but adds unnecessary structural burden.
- Reactive design choices like bolted brackets suggest a lack of confidence in early-stage simulation or validation.
- Ford’s casting-led approach offers a strong comparative model for platform improvement.
BYD has proven they can deliver industry-leading EVs. The Shark, however, highlights the importance of platform maturity, early architecture planning, and lean design. This BYD Shark teardown analysis is a cautionary tale: great components alone won’t save a system weighed down by bad structural decisions.
