Tesla’s Cybertruck casting evolution represents one of the most dramatic advancements in lean vehicle design and manufacturing efficiency to date. In less than five years, Tesla transformed traditional multi-part stamped assemblies into massive, integrated aluminum castings—eliminating complexity, improving consistency, and redefining cost-effective production for electric vehicles.
The Munro Live team, led by Sandy Munro, recently walked through the design lineage that brought Tesla from a 120-piece rear structure in 2018 to a single-piece Giga casting in the 2024 Cybertruck. This leap is not only monumental in scale, but in strategic vision—a reflection of Tesla’s relentless pursuit of manufacturing innovation.
From 120 Parts to 1: A Casting Revolution
When Munro first analyzed Tesla’s rear structures, the contrast was stark: one version cobbled together from 120 individual stamped components versus a new iteration made from a single aluminum casting. The implications were clear—dramatic reductions in tooling, assembly labor, and tolerancing issues.
Even more impressive, Tesla achieved this shift in under two years. Most automakers would take that long just to gather stakeholders to discuss such a radical change. But Tesla didn’t just discuss; they executed—and they did it twice, first with the Model Y and then, at a larger scale, with the Cybertruck.
Aggressive Integration: Going Farther, Faster
Tesla’s Giga casting approach isn’t simply about part count reduction—it’s about functional and structural integration. Compared to other OEMs experimenting with smaller castings, Tesla castings stretch both forward and rearward, serving as sealed, load-bearing elements integrated into the crash zones.
The Cybertruck takes this even further. Its castings are heavier, more complex, and connect more structural surfaces across the body-in-white. Tesla seals stamped and cast elements together with polyurethane and adhesive bonding, a strategy that tightens tolerances while enhancing NVH performance and crash energy management.
Wire Routing & Assembly Line Efficiency
Another benefit of casting: simplified wire and pipe routing. Traditionally, vehicle wiring is a challenge on the assembly line—haphazard hole placements, manual threading, and inconsistent mounting methods slow down production.
Tesla bypasses this by designing castings with integrated routing paths. Wiring can be woven and clipped into place quickly and securely. This reduces rework, improves worker ergonomics, and ultimately speeds up assembly—a hallmark of lean manufacturing.

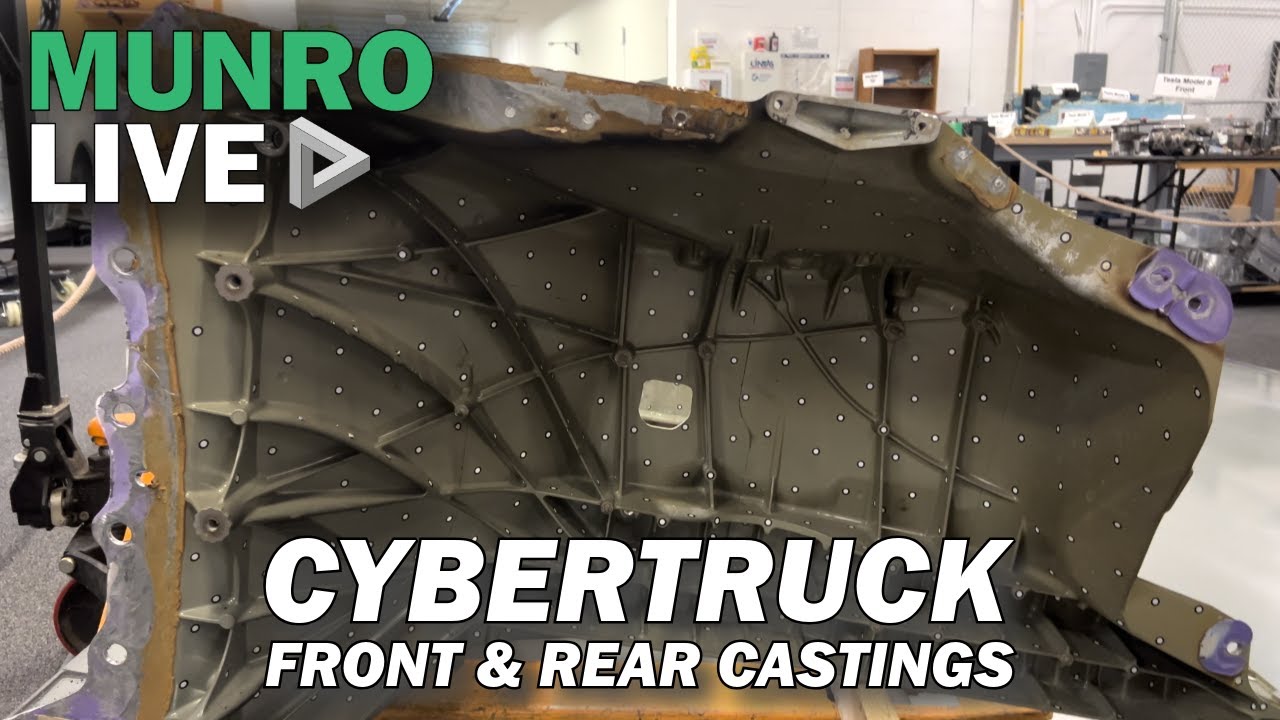

Cybertruck Castings vs. Model Y: A Step Forward
While the Model Y Giga castings were a major breakthrough, the Cybertruck shows refined improvements. These include:
- Reinforced gussets and ribbing around structural edges
- Improved connections to the battery pack
- Eliminated minor defects found in early Model Y castings
- Stronger integration points for better load path distribution
These enhancements aren’t cosmetic—they directly impact vehicle performance, safety, and production consistency.
Custom CFD and CAD for Casting Flow
One of the standout innovations in the Cybertruck’s development was Tesla’s use of a proprietary computational fluid dynamics (CFD) system. Traditional die-casting requires high tonnage—often 9,000+ tons—to force molten aluminum through complex dies.
Tesla’s system optimized the flow geometry, allowing the Cybertruck castings to be completed in a 6,000-ton press. This not only reduces equipment costs and energy consumption but also supports more organic, curved structural geometries. The result: stronger castings with less mass and better crash energy management.
These castings exhibit what the Munro team describes as “wave features”—complex organic forms that manage load impulses more like fluid structures than rigid grids. This fluidity is intentional, directing crash energy through predefined load paths.
Manufacturing Space Savings & Strategic Impact
According to Munro’s floor space study, Giga castings free up roughly 40% of manufacturing space compared to traditional stamped assemblies. Dies and subassembly stations once required for dozens of parts are now obsolete.
This spatial efficiency creates a compounding advantage. Less factory real estate means lower capital expenditure. Fewer assembly steps mean fewer workers. Simpler fixturing results in tighter tolerances. The cost savings are significant, and Tesla’s competitors are taking notice.
Munro emphasized that “everybody on the planet now is talking to us about castings.” The automotive industry, once slow to adapt, is now urgently investigating how to replicate or rival Tesla’s success.
Precision & Fixture Philosophy: Castings as Datum
Tesla’s philosophy extends beyond part simplification. The Cybertruck’s castings aren’t just components—they act as fixtures during assembly.
In conventional builds, body panels are clamped in various jigs and welded or bonded with slight variability. Tolerances can drift, and purchasing variations in steel can wreak havoc on consistency.
With the Cybertruck, castings are the fixed datum—the precise geometric anchor around which the rest of the vehicle is built. This approach improves geometric dimensioning and tolerancing (GD&T), flushness, and fit, resulting in:
- Cleaner panel gaps
- Reduced wind noise
- Improved vehicle acoustics (NVH)
- Higher perceived quality
This level of repeatability is a game-changer for manufacturing.
The Road Ahead for Tesla—and the Industry
Tesla’s quick leap from rear-only castings in 2020 to full Giga castings front and rear in the 2022 Model Y—and now to even larger and more refined castings in the Cybertruck—is unparalleled.
It raises the bar for what’s possible in automotive engineering. And it’s not just about reducing parts—it’s about unlocking new levels of structural performance, process repeatability, and cost optimization.
As Sandy and the Munro team reflect, the most exciting question is what Tesla does next. Will future vehicles further merge casting and battery architecture? Will casting methods expand into structural crash rails or crossmembers?
If history is any guide, Tesla won’t stand still—and the rest of the automotive world will be racing to catch up. And if you’re an engineer, executive, or EV enthusiast watching the future of manufacturing unfold, Tesla’s Giga casting approach deserves your attention. It’s not just clever—it’s transformative.
