Tesla continues to redefine automotive technology, and the Cybertruck is perhaps the clearest demonstration of this trend. One of its most significant innovations lies beneath the surface: a triple-redundant steer-by-wire system. This advanced steering setup, which removes any mechanical connection between the steering wheel and the front axle, positions Tesla’s electric truck closer to aircraft and maritime control standards than traditional automotive designs.
Understanding this system offers a window into the future of lean design, modularity, and electronic control architecture. In this article, we break down how Tesla’s steer-by-wire setup works, what makes it unique, and why it matters.
What Is Steer-by-Wire?
Steer-by-wire eliminates the physical steering column, rack-and-pinion assembly, and direct mechanical linkage. Instead, driver input is measured via sensors and translated into wheel movement by electric motors. While steer-by-wire systems exist in aircraft and ships, they’re exceedingly rare in cars—making the Cybertruck a trailblazer.
Unlike Mercedes and Infiniti, which still retain mechanical backups, Tesla’s system in the Cybertruck is pure steer-by-wire with triple redundancy. This architecture is designed for fail-safety and performance, akin to what you’d find in fighter jets or commercial aircraft.
Triple-Redundant Safety Architecture
Tesla’s Cybertruck employs a robust, aerospace-grade approach to reliability:
-
Two Electric Motors: Located in the front steering rack, they ensure that if one fails, the other takes over seamlessly.
-
Three Position Sensors: These sensors detect steering input and output. A tie-breaker algorithm ensures the correct action when signals disagree.
-
Ethernet Loop: The system uses a dual redundant 48V Ethernet communication loop, providing ultra-fast data exchange and failover capability.
This level of redundancy ensures steering reliability even in the event of component failure, reinforcing Tesla’s push for autonomous and safety-critical systems.

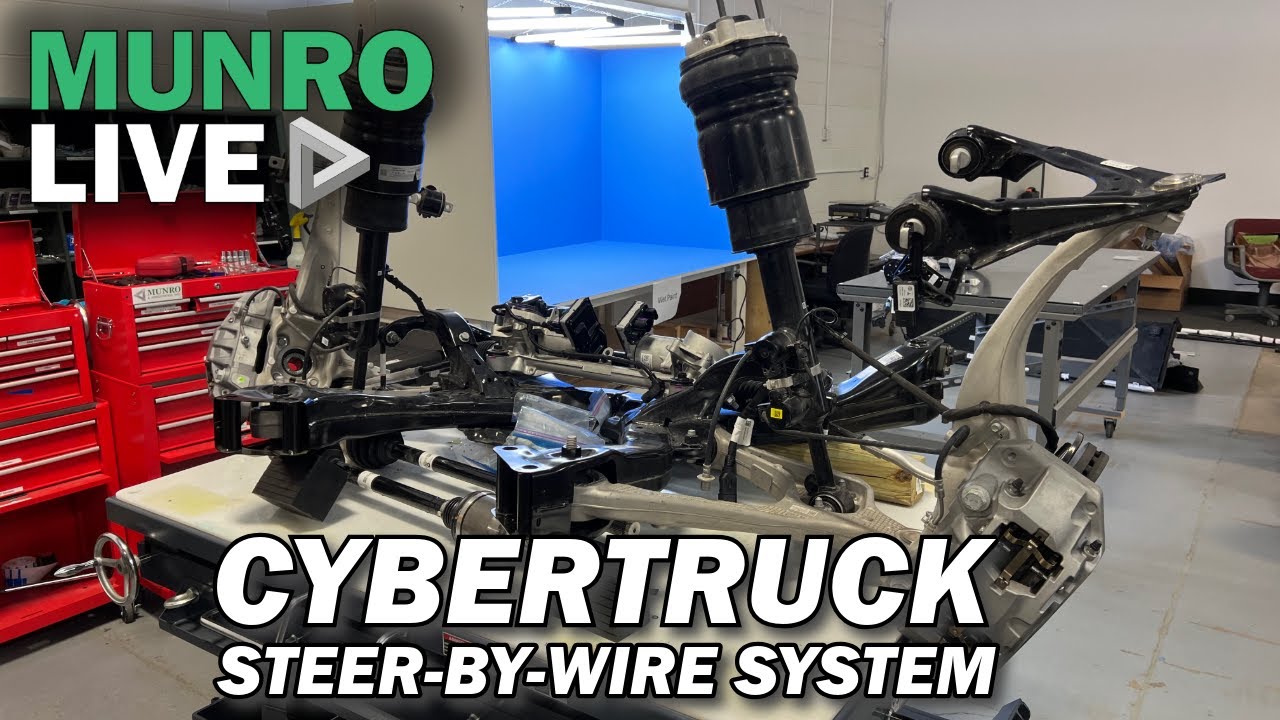

How It Works: Anatomy of the System
At the driver’s end, the system features a force feedback motor and steering angle sensor inside the cabin. When the driver turns the wheel:
-
The sensor captures the angle input.
-
That data is transmitted via a redundant Ethernet loop to the front steering rack.
-
Two electric motors drive the pinion through what’s likely a planetary gear reduction set.
-
The motion is transferred to the wheels via tie rod ends.
Crucially, because the system is fully electronic, Tesla can dynamically adjust the steering ratio. At low speeds, tight maneuvers require minimal input. At high speeds, the steering becomes less sensitive—offering better control and minimizing overcorrection risk.
Rear-Wheel Steering Adds Precision
The Cybertruck features rear-wheel steering, which plays a key role in enhancing agility and stability:
-
At low speeds, rear wheels turn in the opposite direction to the front wheels, reducing the turning radius. This makes parking and city driving feel more nimble—despite the Cybertruck’s massive size.
-
At high speeds, the rear wheels turn in-phase with the front wheels, increasing stability during lane changes and evasive maneuvers.
This dynamic steering strategy gives the Cybertruck Prius-like U-turn capability and sports car responsiveness—especially impressive given its F-250-scale proportions.
The Role of 48V Architecture
A key enabler of this system is Tesla’s transition to a 48-volt electrical system. Compared to legacy 12V systems and CAN bus communication, 48V enables:
-
Faster signal transmission through Ethernet-based architecture.
-
Smaller and lighter wiring harnesses.
-
Higher power delivery with less heat and lower losses.
This innovation supports not just steer-by-wire but a broader ecosystem of electrified actuators and subsystems—paving the way for smarter, more modular vehicle platforms.
Conventional vs Tesla: A Design Evolution
Where conventional vehicles require:
-
Mechanical steering columns.
-
Hydraulic or electrohydraulic assist.
-
Manual steering feedback.
Tesla replaces these with:
-
Electric actuators and feedback motors.
-
Smart sensors.
-
Software-defined dynamics.
The result? A system that’s lighter, more tunable, and easier to update via software. Tesla can remotely tweak steering responsiveness, behavior under different conditions, or even add features over time.
Supplier Spotlight: ZF in the Mix
While Tesla branding is stamped across the system, ZF appears to be a key supplier. ZF’s presence is visible on the castings in the steering rack. Known for supplying advanced driveline and chassis technology, ZF’s involvement signals the collaborative engineering required to deliver this kind of innovation.
Tesla likely co-developed the system with ZF, combining their vertical integration model with ZF’s specialized expertise in mechatronics and steering.
Rear Unit Design: Belt-Driven Simplicity
Unlike the complex front assembly, the rear steering actuator is more conventional. It’s a belt- or chain-driven unit with a position sensor. The reason? If it fails, the front steering still governs vehicle direction. Rear units don’t require the same level of redundancy.
This distinction allows Tesla to optimize cost and complexity, a hallmark of lean manufacturing principles.
Transforming Vehicle Dynamics
Sandy Munro himself noted how the system transforms the Cybertruck:
“This turns the beast into a sports car… I can make a U-turn with the same radius as a Prius.”
This ability to alter steering behavior via software, combined with mechanical precision, results in a driving experience that feels intuitive at all speeds. The truck’s size “shrinks” in urban environments, and it remains stable and predictable at highway speeds.
Over-the-Air Control and Continuous Improvement
One of Tesla’s core philosophies is that the car is never finished. Through over-the-air (OTA) updates, they can:
-
Adjust steering behavior.
-
Improve sensor interpretation.
-
Tune dynamic responsiveness based on telemetry.
This transforms the Cybertruck from a static product into an evolving platform—continuously refined and improved even after delivery.
Cybertruck Steer-by-Wire Takeaways
Tesla’s steer-by-wire system showcases how automotive design is rapidly converging with aerospace and robotics. For automotive engineers, this represents a massive shift toward software-defined vehicles, redundancy-based safety models, and modular architecture. For investors, it illustrates Tesla’s deepening technological moat in control systems and electrification.
Key insights:
-
Full steer-by-wire with no mechanical backup is now reality.
-
Triple redundancy aligns with aircraft safety standards.
-
48V architecture and Ethernet loops enable leaner, faster systems.
-
OTA updates turn vehicles into continuously evolving products.
Final Thoughts: A Technology Company First
Tesla has once again demonstrated that while it sells cars, it builds technology platforms. The steer-by-wire system is more than a steering upgrade—it’s a signal of what’s to come for vehicle control, safety, and personalization.
