Tesla’s Cybertruck is not just a revolution in design and materials — it’s also a leap forward in thermal management architecture. In a detailed teardown session, Munro & Associates’ engineers reveal how the Cybertruck breaks with traditional Tesla approaches, especially in thermal management and structural layout. This article takes a deeper dive into the Cybertruck’s redesigned cooling system, exploring its engineering choices, component changes, and implications for performance, durability, and efficiency.

Larger Demands, Bigger Cooling Challenges

The Cybertruck isn’t just large — it’s massive. The tri-motor “Cyberbeast” variant weighs nearly 7,000 pounds and offers 11,000 pounds of towing capacity. That level of performance places a serious demand on the vehicle’s heat management systems, particularly under extreme use like towing or desert driving. To handle the added thermal strain, Tesla scaled up several cooling components, while also integrating them into an innovative structural framework.

Heat Pump Familiarity — With Custom Touches

Despite the radical look of the Cybertruck, many of the thermal components appear familiar to seasoned Tesla observers. The system still features a super manifold V2, chiller, liquid-cooled condenser (LCC), and electric air conditioning (EAC) compressor — components carried over from previous vehicles like the Model S Plaid and Model Y.

However, subtle but important differences exist. The Cybertruck’s LCC, for example, is about an inch longer than the Model S Plaid’s, increasing its heat exchange capacity. Given the Cybertruck’s larger cabin and heavier load profile, this added surface area is likely essential for maintaining cabin comfort and managing powertrain temperature under load.

What’s puzzling is that even though this LCC is longer and potentially more vulnerable to vibration or impact strain, Tesla did not include a retention strap — a solution previously used in older systems. This suggests either a more robust internal design or Tesla’s willingness to accept a greater risk in component stress.

A Bigger, Beefier Compressor

Another notable difference is the EAC compressor. While the core design resembles earlier versions, the Cybertruck’s unit is clearly upsized. It’s visibly larger and has reinforced power electronics, indicating it may be optimized for higher flow rates or extended thermal load management. That’s critical in a vehicle where the cooling system serves not just the cabin, but also the powertrain and battery pack — especially when operating at 800 volts.

Tesla’s choice of an 800-volt electrical architecture reduces current for the same power delivery, which can help minimize I²R losses. However, it also means the system may generate less natural waste heat — prompting questions about whether Tesla has included supplemental elements like a PTC heater to precondition the battery in cold climates. The engineers at Munro remain curious to discover whether any hidden thermal elements lie further within the system.

Structural Integration via “Super Beam”

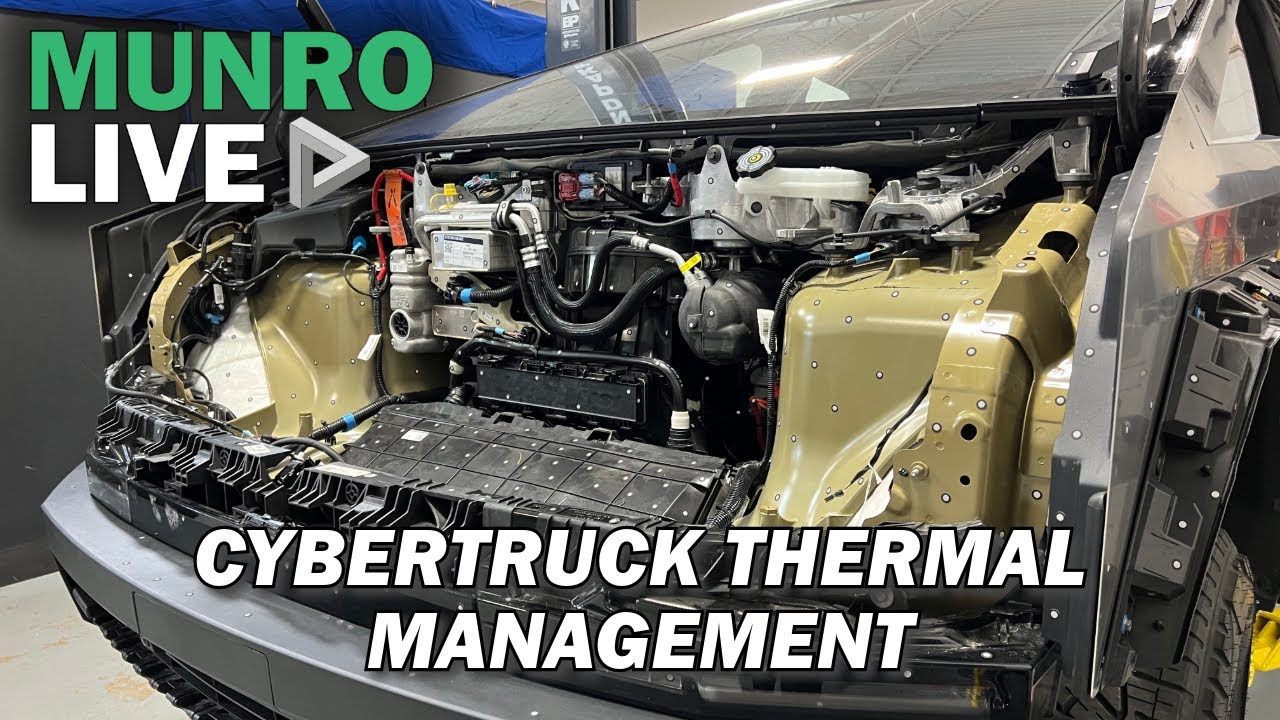

Perhaps the most distinct feature in the Cybertruck’s front thermal architecture is how it’s physically packaged. Key thermal management components are pre-mounted onto a cast aluminum “super beam” that spans from shock tower to shock tower. This strategy isn’t entirely new — earlier Teslas like the Model S and Model Y used similar methods — but the execution here is more integrated and structurally significant.

In previous models, such beams were made from rolled steel tubes or extruded aluminum with welded-on brackets. In the Cybertruck, the beam is a single cast aluminum unit that not only supports thermal components but also plays a vital role in chassis rigidity. It’s larger in all dimensions: thicker vertically (Z-axis), longer front-to-back (X-axis), and broader side-to-side. That size increase enables it to support heavier components and absorb more suspension and structural loads.

Tesla’s use of gigacastings for the front chassis further complements this modular approach. Entire subsystems, including the thermal management package, can be pre-assembled and then mounted as one unit. This lean manufacturing method reduces labor time, improves repeatability, and supports Tesla’s scalable vehicle platform strategy.

HVAC Moves to the Front — With Benefits and Tradeoffs

Another significant change involves the HVAC system. In traditional Tesla layouts, the HVAC blower case lives inside the cabin, under the instrument panel. In the Cybertruck, it’s moved to the front of the dash, outside the cabin.

This offers several advantages:

However, this also requires more complex grommet and ducting solutions to connect the external HVAC system back into the cabin. Larger air passages must penetrate the dash, increasing complexity and potentially adding points of failure for NVH or water sealing.

Is This a Platform Strategy in Disguise?

While the Cybertruck doesn’t share a direct platform with other Teslas, Munro’s analysis suggests that Tesla is employing a modular design philosophy that borders on a platform strategy. The execution method — build subsystems onto beams or castings, then integrate them during final assembly — echoes a common architecture theme.

In essence, Tesla may not be building the Cybertruck on the same frame as the Model Y or Model S, but they are clearly transferring build logic and layout principles. This strategic modularity could pay dividends as Tesla ramps production and considers future models using similar high-load or high-capacity designs.

Cooling Capacity for Towing and Payload

The Cybertruck’s tow and payload capacities are unmatched by previous Teslas — up to 11,000 pounds towing and 2,500 pounds in bed payload. These figures require not only brute power but also consistent thermal reliability. Extended towing places sustained thermal loads on the battery, powertrain, and inverter.

The enlarged LCC and EAC compressor suggest Tesla has proactively scaled its cooling system to meet these demands. Still, questions remain about the Cybertruck’s long-term heat dissipation strategy during intense use. Will Tesla rely solely on increased component size? Or are there intelligent control strategies and hidden heat exchangers that haven’t been revealed yet?

800V and 48V Architectures — Risk vs Reward

Transitioning to 800V for traction and 48V for accessories is not a small feat. As the engineers noted, this shift introduces numerous risks — from component sourcing to electrical behavior under load. But the benefits are clear: reduced wiring weight, faster charging, and potentially more efficient heat management.

What remains to be seen is how far Tesla pushed the 48V architecture — did it extend to minor devices like sun sensors and control modules, or is it limited to major actuators like the HVAC compressor and steering systems? Future teardowns will reveal the extent of Tesla’s commitment to this bold electrical restructuring.

Final Thoughts: A Bold Step Forward

Tesla’s Cybertruck thermal management system reflects a careful blend of continuity and innovation. While many parts are familiar, their arrangement, size, and structural integration represent a bold departure. With greater thermal demands from size, towing, and architecture, Tesla’s solutions seem targeted and intentional.

For engineers, investors, and EV enthusiasts, the Cybertruck offers a compelling case study in how thermal strategies must evolve alongside powertrain and structural innovations. As Munro continues its teardown journey, expect further revelations on how Tesla balances risk, cost, and performance at the bleeding edge of EV design.
