Electric Motor Inverter Explained: How It Works and Why It Matters

Electric vehicles (EVs) are transforming the automotive industry. But at the heart of every EV’s drivetrain lies an unsung hero: the inverter. In this article we’ll explore how an electric motor inverter works, breaking down complex engineering principles into clear, actionable insights for automotive engineers, EV enthusiasts, and investors.

Understanding the inverter’s role is crucial. It converts the battery’s direct current (DC) into the alternating current (AC) needed by the motor, controlling torque, speed, and regenerative braking. This core function ties directly to lean design, expert teardown analysis, and the pursuit of cost-effective, high-performance automotive solutions.

What Does an Inverter Do?

An inverter takes DC electricity from the EV battery and transforms it into three-phase AC electricity. The three phases drive the motor to produce rotation and torque. But while this sounds simple, the engineering behind it is anything but — especially when designing for efficiency, thermal management, and packaging.

In the example of the Tesla Cybertruck inverter, which bolts directly to the motor, you see three large connections for the motor phases and a DC input. Internally, a control board manages solid-state switches (MOSFETs), turning DC into AC at incredible speeds with nearly 99% peak efficiency.

Inside the Inverter: Switches, Drivers, and Cooling

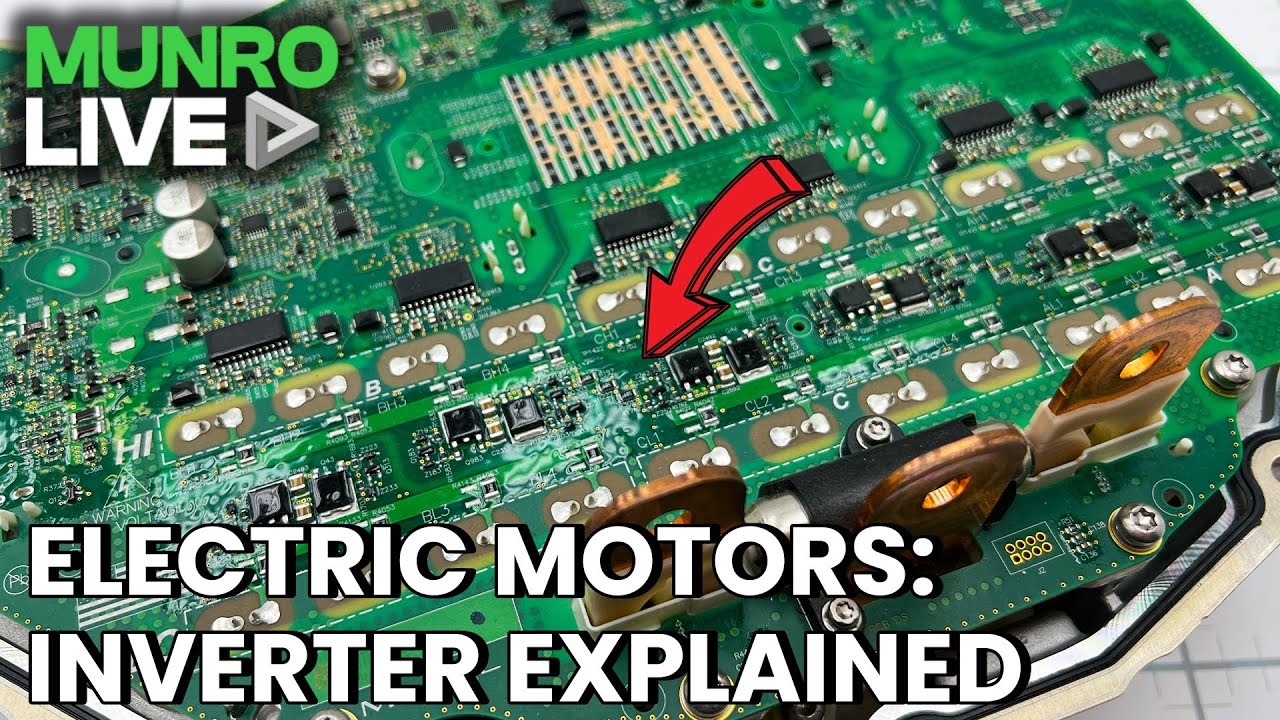

Breaking down a Model Y inverter reveals key components:

Control board: Contains high and low circuits that connect to the battery poles.
Gate drivers: Six identical circuits command the MOSFET switches.
MOSFET switches: Fast, efficient solid-state transistors manage power flow.
Capacitor: Smooths out fast-changing power demands to match battery capabilities.
Cooling system: Transfers heat from the switches through liquid-cooled fins to maintain performance and reliability.

Thermal engineering is critical. Even with high efficiency, conducting hundreds of amps through small transistors creates heat due to conduction and switching losses. As inverter packages shrink, effective cooling becomes more important — particularly as OEMs double voltage (as with Cybertruck) while maintaining current and reducing size.

The Science Behind the Magic

To demystify inverter operation, the Munro engineers built a simple hand-driven model. Our demo shows how six switches, organized into three pairs, can direct power through coils (phases) to create a rotating magnetic field. This rotating field is what causes the motor rotor to spin.

Only one switch per pair is on at any time — turning both on would short the power supply.
The sequence of on-off switching across the three pairs creates a changing magnetic field.
A rotating compass needle in the demo visually demonstrates how the field shifts phase to phase.

Six-Step Control and PWM

Basic inverter control uses six steps — a sequence of on-off combinations across switches to rotate the magnetic field 360 degrees. While this works, it results in jerky movement because current shifts abruptly from one phase to another.

The solution? Pulse Width Modulation (PWM). By turning switches on and off thousands of times per second, the inverter creates an average current that varies smoothly. The result:

Smooth sine-wave-like current in each phase.
Continuous, steady rotation of the magnetic field.
Improved motor performance and efficiency.

With PWM, engineers can adjust the duty cycle (percentage of time a switch is on) to precisely control motor torque and speed.

Regenerative Braking (Regen): Reversing the Process

EV inverters do more than drive the motor — they also enable regenerative braking by reversing the power flow:

Instead of pushing current to the motor, the inverter switches on slightly after rotor alignment, generating a drag torque.
As the motor spins, it generates AC voltage. When this exceeds battery voltage, current flows back into the battery.
Diodes within the inverter ensure that current can only flow back when appropriate, protecting the system.

But what happens at low speeds when the motor voltage is too low to exceed battery voltage? Engineers use PWM again:

Fast on-off switching of the inverter’s MOSFETs creates voltage spikes through coil inductance.
These spikes are smoothed by capacitors and safely stored back in the battery.

This technique allows regenerative braking to function seamlessly — even as the vehicle slows to a stop — maximizing energy recovery and efficiency.

Lean Design and Thermal Challenges

Modern EV inverter design reflects key lean manufacturing principles:

Smaller, more efficient packages reduce cost and weight.
Higher voltage systems deliver more power from smaller units.
Cooling systems become more sophisticated as efficiency and density improve.

For example, comparing Cybertruck and Model Y inverters shows rapid evolution: the newer Cybertruck unit handles twice the voltage in a smaller size — a testament to expert engineering and cost-driven innovation.

Why It Matters: Engineering and Investment Insights

Understanding inverter design offers critical insights for both engineers and investors:

For engineers: The inverter is a vital integration point where power electronics, thermal systems, motor control algorithms, and safety protections converge.
For investors: Inverter efficiency, cost, and performance directly influence EV range, durability, and competitiveness — all key to market success.

Innovations in inverter technology ripple through the industry, shaping how OEMs achieve higher margins and better performance while reducing complexity.

Final Takeaways

The electric motor inverter is more than just a power converter — it’s a cornerstone of modern EV design. As shown by Munro Live’s teardown insights and hands-on demos:

Six switches and clever control algorithms transform DC into smooth, high-torque AC.
Pulse Width Modulation enables precision control and energy efficiency.
Integrated thermal management and packaging innovations drive progress.
Regenerative braking systems leverage the inverter to maximize efficiency and range.

In an industry where cost, efficiency, and performance drive adoption, understanding inverter technology is essential. Whether you’re designing the next generation of EVs or investing in the companies that build them, this component offers deep insights into automotive innovation.
