As electric vehicles (EVs) become mainstream, thermal management remains a critical design and engineering challenge—especially in cold climates. Heating the cabin and battery system efficiently without significantly compromising driving range has become a focal point for OEMs. Two key solutions dominate the field: the PTC (Positive Temperature Coefficient) heater and the heat pump. In this Munro & Associates breakdown, we walk through how each system works, their pros and cons, and what this means for automotive engineers, investors, and EV enthusiasts.
Understanding Thermal Management in EVs
Thermal management in EVs is more complex than in internal combustion engine (ICE) vehicles. While ICEs produce abundant waste heat that can be reused to warm the cabin, EVs operate so efficiently that little residual heat is available. This makes dedicated thermal systems essential—not just for passenger comfort but for battery performance, which operates best around room temperature.
Ineffective thermal control doesn’t just reduce range—it can also shorten battery life and lead to higher warranty claims for automakers. This is why next-gen EV platforms increasingly integrate advanced HVAC systems into their core architecture. These are not just add-ons, but engineered solutions tied into overall vehicle energy strategy.
The PTC Heater: Affordable, Simple, But Power-Hungry

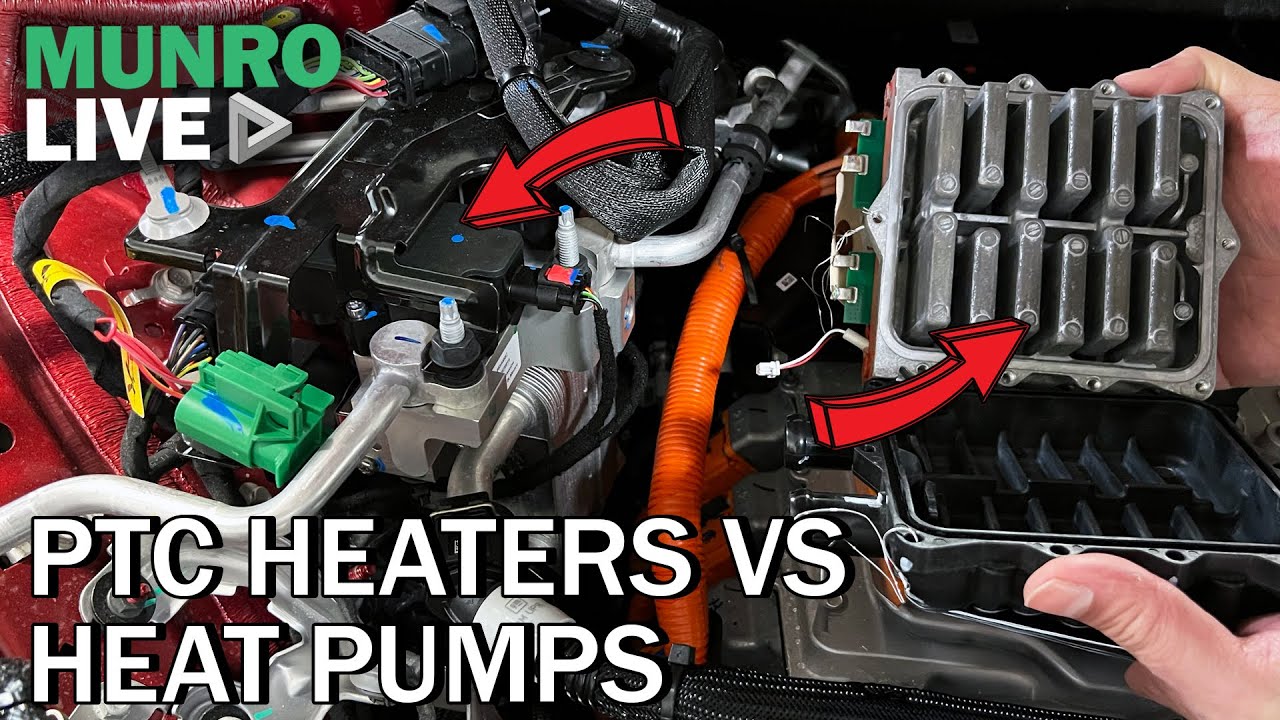

PTC heaters are the most common thermal solution in lower-cost EVs like the Chevy Bolt. These systems operate similarly to an electric toaster. A controller monitors water temperature and powers a set of electric heating elements that warm the coolant. This heated coolant is then circulated through the battery system and into the cabin’s heater core.
Advantages:
- Low Cost: Ideal for budget-conscious models.
- Compact and Lightweight: Easy packaging in tight spaces.
- Quick Cabin Warm-Up: Comfort is delivered in minutes.
Drawbacks:
- Inefficient: Pulls significant power from the battery.
- Range Loss: Can reduce winter driving range by more than 20%.
- Limited Scalability: Less suited for high-efficiency applications.
Despite its simplicity, the PTC heater’s main downside is its impact on EV range—especially critical in cold weather driving.
The Heat Pump: Complex Yet Efficient
In contrast, a heat pump is essentially a reversible air conditioner. Common in higher-end EVs—and now making its way into affordable models like the Chevy Equinox EV—this system transfers heat rather than generating it directly. It can operate in either direction to provide both heating and cooling, depending on the flow of refrigerant.
How It Works:
- The heat pump uses a compressor, expansion valve, and heat exchangers to manage refrigerant and coolant loops.
- The refrigerant transfers heat into the coolant system, which then heats the cabin or battery.
- By reversing the refrigerant flow, the same system can also cool the vehicle.
Advantages:
- Energy Efficiency: Uses much less power than PTC systems.
- Better Range Retention: Cuts winter range loss to around 10%.
- Dual Functionality: Provides both heating and cooling with one system.
Challenges:
- Higher Complexity: Involves extensive plumbing and multiple fluid loops.
- Costlier Components: Includes high-pressure refrigerant systems and advanced control units.
- Space and Weight: Slightly larger footprint than a PTC system.
The additional plumbing and refrigerant complexity might seem like a drawback, but the trade-off is well worth it for the increased energy efficiency and extended range.
Comparative Breakdown: PTC Heater vs Heat Pump
| Feature | PTC Heater | Heat Pump |
|---|---|---|
| Initial Cost | Low | Higher (now reducing in newer models) |
| Energy Efficiency | Low (20%+ range loss) | High (10% range loss or less) |
| Cabin Warm-Up Speed | Fast | Moderate |
| Complexity | Simple | High—requires coolant & refrigerant loops |
| Maintenance | Minimal | Moderate |
| Packaging | Compact | Larger, heavier |
| Ideal Use Case | Budget EVs, mild climates | All EVs, especially cold-weather regions |
The Battery Factor: Not Just About Comfort
EV heating systems aren’t just for people—they’re also vital for batteries. Lithium-ion cells operate optimally between 15°C and 25°C (59°F to 77°F). Cold temperatures slow chemical reactions, reduce charge acceptance, and degrade performance. Both PTC heaters and heat pumps help maintain battery temperatures within this critical range, but heat pumps do it more efficiently.
This is why automakers like Tesla, Hyundai, and now GM have embraced heat pump technology across their lineups—even in mid-range models. It’s a matter of performance, longevity, and customer satisfaction.
An efficient thermal system also supports fast charging. Batteries must be within an optimal temperature range to accept high charging currents. If the pack is too cold, charging slows significantly, negating the benefits of high-voltage charging networks. Heat pumps help precondition the pack more effectively, saving time at the charger and improving overall user experience.
Shifting Industry Trends: Heat Pumps in Affordable EVs
Historically, heat pumps were limited to premium EVs due to their cost and complexity. However, recent innovations have brought down system costs, allowing manufacturers to integrate them into entry-level models like the $35,000 Chevy Equinox EV. This marks a significant shift in thermal management strategy across the industry.
As EV market competition heats up, offering better winter performance and extended range at an affordable price point could become a major differentiator. The democratization of heat pump systems signals a push toward leaner, smarter design practices in EV engineering.
OEMs are increasingly treating HVAC not just as a comfort system but as a core part of energy management. Expect to see more collaboration between thermal engineers, battery teams, and powertrain developers as integrated energy strategies become the norm.
Takeaways for Engineers and Enthusiasts
- PTC heaters are affordable and effective but drastically reduce winter range.
- Heat pumps are more complex but offer superior efficiency and are becoming standard even in non-luxury vehicles.
- Battery thermal regulation is as critical as cabin comfort in EVs.
- Range anxiety in cold weather is a real concern that can be mitigated with smart thermal system choices.
- Design trade-offs must consider cost, efficiency, packaging, and climate.
- Integrated thermal strategy is key to unlocking next-gen EV performance.
