In this detailed teardown from the team at Munro, we explore the front electric drive module (EDM) of the GMC Hummer EV—a 9,000+ pound off-road behemoth of a motor engineered for power and durability. This walkthrough highlights design choices made to handle immense torque, shock loading, and thermal management, with expert commentary on gear sizing, cooling strategies, and park pawl mechanisms.
A Massive Job for a Massive Machine

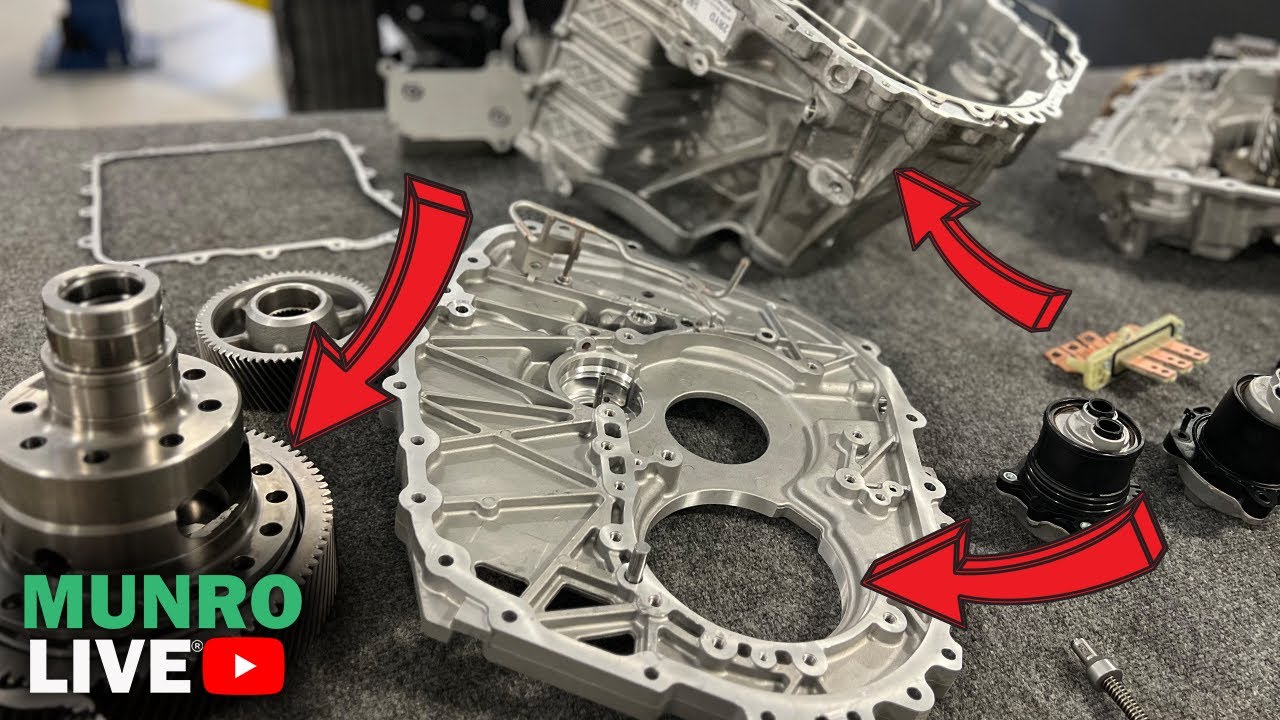

GMC’s offering is not your typical EV. With 35-inch tires and a gross vehicle weight rating (GVWR) far above most passenger vehicles, the demands placed on its front EDM are extreme. Our teardown of the Hummer EV’s motor identified three major assemblies within the EDM:
- The motor housing (containing the stator and rotor)
- The inverter unit
- A structural gearbox bulkhead
That bulkhead does double duty—acting as both a structural element sandwiched between massive cast aluminum pieces and as a coolant manifold for the motor.
Robust but Conventional Architecture
While the layout may seem traditional—offset rotor/stator aligned with the gear drive—the execution is anything but casual. Gigantic gear teeth, wide tooth engagement surfaces, and large hubs all point to torque durability. The design doesn’t optimize for efficiency as aggressively as in lighter EVs like the Lucid Air; instead, it prioritizes shock resistance and structural integrity.
This is crucial when considering how electric torque interacts with terrain. Sudden loss and regain of tire-ground contact can cause shock loads through the driveline, especially in a 9,000-pound machine. The design reflects a clear understanding of these real-world dynamics.
Locking Differentials for Real Off-Roaders
The Hummer’s front differential includes an electronically locking feature—a nod to its off-road intentions. Locking diffs force both wheels on an axle to rotate together, providing traction in uneven or slippery conditions. Though not new, integrating this with an electric drivetrain showcases a blend of legacy ruggedness with modern electronics.
Park Pawl: Old School Meets High Mass
Where Tesla and Polestar are eliminating park pawls in favor of electronic parking brakes (EPBs), GM’s Hummer EV includes a substantial front-mounted park pawl assembly. Why?
Weight.
With such a high curb weight and GVWR, GM likely needed redundant systems to ensure parking stability. Uniquely, this park pawl is serviceable—mounted externally with just three fasteners and one seal. This is in contrast to the Ford Lightning’s internal planetary-based design. It’s a choice that trades weight and complexity for safety and serviceability.
Cooling: Complex, But Controlled
Cooling is another area where GM invests heavily in the Hummer’s EDM. An array of strategies ensure temperature control:
- Phase lead cooling: Directed oil sprays target the conductors exiting the stator.
- Rotor shaft oiling: Oil is injected down the shaft, routed through precision pathways, and wicks outward through the rotor to remove heat.
- Plate cooler integration: Though conventional, the plate cooler separates oil and ethylene glycol systems. We noted an opportunity for tighter integration to simplify hose routing and improve efficiency.
While not as elegant as some alternatives, the design works hard to maintain performance under load.
A Bolt-In or Press-Fit Stator?
The stator is bolted in place rather than press-fit—an approach that supports modularity but invites complexity. Press-fitting can introduce aluminum shavings during installation, as seen in the vehicle’s particulate filters. Bolting avoids some of these issues but adds extra steps, fasteners, and potential misalignment risk.
Interestingly, GM supplements the bolt-in design with secondary stabilizing bolts and a stamped plate to distribute torque loads—something more commonly seen in vehicle subframes. This emphasizes how torque management is top priority in this drivetrain.
Integration Opportunities and Design Tradeoffs
While the Hummer EV’s front motor design succeeds in durability and power delivery, it leaves room for refinement in integration and lean manufacturing. One standout opportunity lies in the cooling system architecture. The inverter and the plate cooler sit in close proximity—within a foot of each other—yet they operate via separate coolant loops. This necessitates redundant hose runs and fittings that add weight, cost, and assembly complexity.
In an ideal scenario, GM could explore tighter integration between the inverter housing and the coolant plate. A combined or manifolded system, akin to transmission valve body strategies, could eliminate unnecessary connections and reduce machining steps. This would not only simplify final assembly but also support leaner, more modular manufacturing at scale.
Another area ripe for improvement is the machine complexity created by multi-axis assembly requirements. Several components—particularly the park pawl actuator and cooling passages—require machining from multiple angles. This leads to costly tooling, complex CNC operations, and greater potential for assembly variation. Standardizing machining axes, or better yet, redesigning parts to consolidate those operations, could yield significant savings.
Similarly, while GM employs innovative materials like stamped aluminum overmolded seals, these come with tradeoffs. Although faster to install than RTV-based liquid gaskets, they introduce added tooling costs and material expenses. Still, in a high-volume production environment where time is money, GM’s approach may pay off in throughput.
Ultimately, the Hummer’s front EDM represents a functional and conservative design—robust but overbuilt in places. GM appears to have prioritized rapid deployment over lean optimization, a tradeoff that makes sense given the vehicle’s mission and aggressive production timelines. As future iterations evolve, we may see GM adopt tighter integration, smarter cooling layouts, and even more modular assembly techniques in pursuit of true lean design.
Lean Manufacturing: An Opportunity?
Despite its impressive performance, the Hummer EDM reveals areas for improvement in lean design. Multiple machined surfaces, threaded fasteners, and component access challenges point to a complex assembly with high manufacturing costs. Our teardown shows that more efficient oiling manifolds or integrated inverter cooling loops could reduce parts and simplify machining.
The stamped aluminum overmolded seals are another example—high cost, but potentially lower cycle time. The decision appears to favor speed of production over simplicity of design.
Comparative Takeaways
- Against the Lightning: The Hummer’s front motor unit is more complex but serviceable. The Lightning opts for a compact, internal park pawl.
- Against Tesla: Tesla has eliminated mechanical park mechanisms entirely in some models, betting on EPBs and software logic.
- Against Lucid: Lucid minimizes oil usage in favor of simpler, lightweight strategies—a contrast to the Hummer’s heavy-duty cooling architecture.
Engineering for Mass and Muscle
The Hummer EV’s front motor isn’t about shaving grams. It’s about enduring abuse—off-road jolts, heavy towing, and the sheer inertia of a vehicle this size. This teardown shows how GM engineers made deliberate tradeoffs: sacrificing lean simplicity for rugged reliability.
While future iterations may adopt more integrated or lightweight approaches, this first-gen execution is purpose-built for GM’s EV off-road flagship.
Final Thoughts:
This teardown of the Hummer EV’s front motor reveals a design focused on power, robustness, and torque management under extreme conditions. For engineers and enthusiasts, it’s a masterclass in what it takes to electrify a vehicle that’s anything but light-duty.
