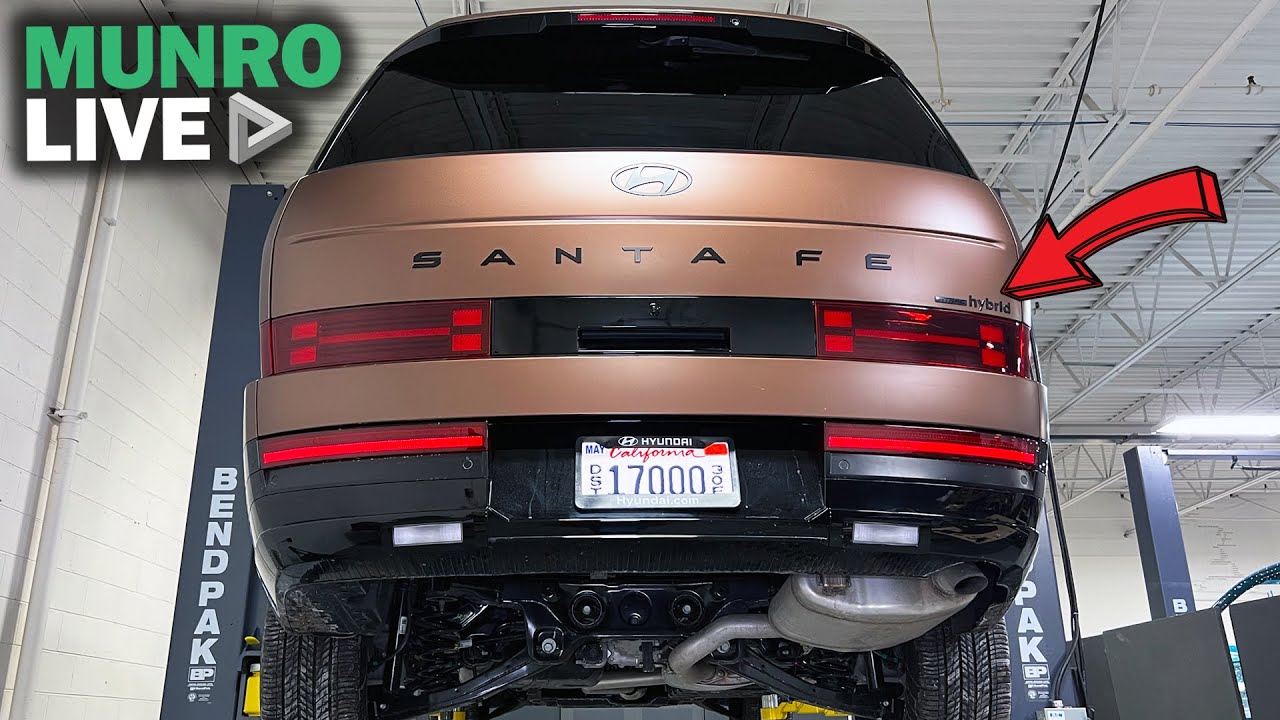

The 2025 Hyundai Santa Fe Hybrid offers more than just a bold redesign—it showcases meaningful underbody engineering advancements. In this teardown, Munro dives deep into the structure, hybrid drivetrain layout, and Hyundai’s evolving approach to crash safety, especially in response to Small Overlap Rigid Barrier (SORB) test requirements.
Let’s take a closer look at what sets this Santa Fe apart under the skin.
Robust Front-End Engineering
The front section features a stamped steel cradle with tube-in-tube sleeve stanchions, giving Hyundai flexibility during assembly to ensure correct Z-height. Leading the structure is an extruded aluminum bumper beam combined with crush cans and expanded polypropylene absorbers—designed for optimal energy dissipation.
A large injection-molded cooling module carrier encapsulates most of the front-end module, reflecting lean design techniques that minimize part count and simplify serviceability.
SORB Strategy and Crash Countermeasures
Hyundai’s SORB compliance strategy shines in this model. The forward splayed motor bay rails and outrigger structures are tailored to meet the 25% overlap criteria of the SORB test. These adaptations enhance crash energy distribution, especially in small offset collisions, and may vary globally depending on regional requirements.
Unlike previous models with bolt-on countermeasures, the Santa Fe integrates SORB-focused geometry into its foundational structure—a significant shift in engineering philosophy.
Hybrid Powertrain Integration
Under the hood, the hybrid system pairs a 1.6L turbocharged engine with a 45kW motor-generator unit (MGU) and a compact 1.5kWh battery. While small, this battery supports critical hybrid functions like regenerative braking and electric-only low-speed propulsion.
Packaging the hybrid drivetrain required careful coordination. High-voltage components and traditional ICE architecture coexist with an EPS column-mounted steering system, layered cooling circuits, and a modular PTU (power take-off unit) enabling all-wheel drive.
Smart Structural Strategies
Stamped clamshells reinforce lower control arms, and the front MacPherson strut suspension includes bolt-in ball joints for easy service. Notably, Hyundai preserves structural consistency with its EV siblings up front—but diverges sharply beyond the firewall.
The ICE model includes full-length torque boxes and sled-runner style reinforcements under the floor, while the EV9 relies on top-mounted battery supports and a flatter chassis layout.
In short, Hyundai adapts its body strategy to powertrain demands—without duplicating unnecessary mass.
Battery and Rear Protection Insights
The rear-mounted battery sits within a stamped tray supported only by PET fiber shielding and mounting straps. There’s no hard underbody armor, likely due to the Santa Fe’s on-road intent rather than off-road capability. Cooling lines run parallel to the battery tray, demonstrating Hyundai’s cost-effective thermal management solution.
The half-saddle fuel tank cleverly shares space with the exhaust tuning chamber. It’s held by a large strap and rubber isolators—another example of thoughtful packaging that balances efficiency and safety.
Rear Suspension and Material Mix
The multi-link rear suspension mimics setups in other Hyundai-Kia vehicles, though it uses fewer aluminum components than the premium EV9. Weight savings come from hollow steel tubes and mass dampers, which may vary between trims or hybrid vs. plug-in hybrid models.
Once again, Hyundai leans on proven strategies: a flex beam rear setup, strategic use of mass dampers, and thoughtful shielding for suspension arms—especially for vehicles expected to encounter road debris or rock chips.
Modular Rear Composite Beam
The composite rear bumper beam deserves special mention. Molded from 45% glass-filled polypropylene, it integrates rear fascia supports, wire routing provisions, and antenna mounts. It’s a lightweight, high-strength solution that Hyundai has championed for years.
Though over-fastened, the part exemplifies composite innovation in non-critical crash zones, providing both structural support and design flexibility.
Quality Control and Assembly Markings
Observations throughout the teardown reveal varied use of part-in-assembly (PIA) markings and quality control checks. Some ball joints and high-voltage connectors show multiple inspection marks, suggesting iterative process improvements common in early production vehicles.
Hyundai’s gradual shift toward positive assurance connectors over manual inspections aligns with lean manufacturing and assembly line automation principles.
Final Thoughts
The 2025 Hyundai Santa Fe Hybrid underbody reveals a balance of cost-effective hybrid engineering, structural rigor, and evolving safety compliance. Hyundai’s modular strategies—visible in the cradle, battery mounts, and PTU configuration—enable platform flexibility without sacrificing strength or functionality.
This teardown highlights the ways Hyundai blends old-school robustness with modern hybrid packaging. From crash countermeasures to composite beams, the Santa Fe Hybrid embodies the company’s commitment to thoughtful, adaptable engineering.
🔧 Key Takeaways for Engineers and EV Enthusiasts:
- Integrated SORB strategies replace bolt-on crash structures
- Hybrid system combines efficiency with modular AWD flexibility
- PET-fiber battery shielding hints at design-for-intent packaging
- Composite rear beam continues Hyundai’s commitment to lightweight innovation
- Marked assembly components reveal ongoing quality refinement
