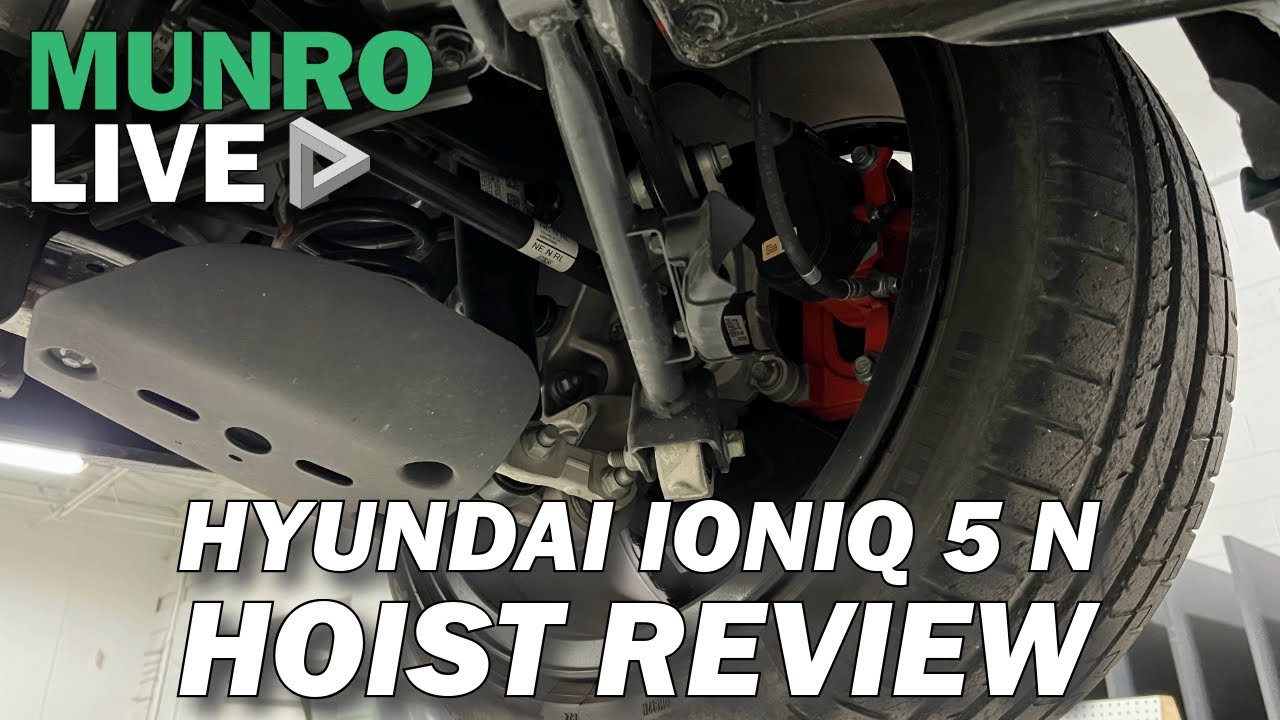

In this hoist review, Munro & Associates takes a deep dive into the Hyundai IONIQ 5 N—a high-performance variant built on Hyundai’s E-GMP platform. Our analysis focuses on the underbody engineering, suspension architecture, and structural reinforcements that transform this EV into a performance machine. By examining how Hyundai balances cost, weight, and dynamic capability, we gain insight into the challenges of scaling performance across a shared platform. This IONIQ 5 N hoist review reveals how engineering elegance meets real-world trade-offs.
Performance Engineering Within a Shared Platform
The Hyundai IONIQ 5 N rides on the E-GMP platform, which also underpins a range of other Hyundai and Kia EVs. This shared foundation means Hyundai must accommodate everything from compact vehicles to large SUVs within the same architectural constraints. As a result, some components are intentionally overengineered—what we refer to as “scar mass”—to handle the most demanding applications across the platform.
Despite these limitations, the IONIQ 5 N manages to stand out. It does this by adding performance-oriented elements without deviating too far from the base architecture. Munro’s team investigates exactly how this was achieved, both from a dynamic and a cost-efficiency standpoint.
High-Performance Braking and Suspension
One of the most noticeable upgrades on the IONIQ 5 N is the brake package. The vehicle features wide 275 mm performance tires wrapped around large rotors with four-piston fixed calipers. These components add significant thermal mass to the braking system, which is critical during high-speed or track driving. The design supports repeated hard braking with minimal fade, aided by air ducts and vented shields that direct airflow to help cool the rotors.
At the suspension level, the IONIQ 5 N retains a MacPherson strut design up top, which is a cost-effective and space-efficient solution. However, the real innovation appears at the bottom, where Hyundai implements a virtual ball lower joint. This geometry refines the vehicle’s kinematics by decoupling vertical and horizontal forces, helping to mitigate bump steer and improve scrub characteristics.
The combination of a traditional upper strut and an advanced lower ball setup offers improved dynamic performance without dramatically increasing part count or cost—an elegant design trade-off that aligns with Munro’s lean engineering principles.
Shared Subframes with Smart Tweaks
The front subframe and major structural components appear consistent with other E-GMP vehicles. However, Hyundai has implemented clever tweaks to enhance cooling and protection. For example, airflow management has been improved through shield modifications and venting in the wheel liners. These changes help channel air toward the front brakes, improving thermal performance during aggressive driving.
Stone protection and aerodynamic considerations are also visible in the lower control arm shields. These elements provide added robustness without resorting to heavier materials or more complex assemblies, reinforcing the theme of smart performance tuning within a fixed cost envelope.
Battery Integration: Structure or Serviceability?
The IONIQ 5 N’s battery pack is a central structural component of the vehicle. It includes both peripheral and mid-pack mounting points that tie directly into the body-in-white (BIW), effectively making the pack a load-bearing part of the chassis. This design improves torsional stiffness and enhances ride quality by ensuring the battery mass moves in sync with the vehicle structure.
However, this structural integration introduces concerns. Mid-pack fasteners increase the number of potential leak paths, which is problematic for EVs exposed to water ingress during operation. Additionally, the use of numerous close-out panels and fasteners may improve serviceability, but at the cost of added complexity and weight. From a lean manufacturing viewpoint, it’s a trade-off between design conservatism and cost-saving simplicity.
Rear Architecture: Bracing for Torque
The rear end of the IONIQ 5 N features reinforced stamped steel bracing and multi-point mounting strategies to cope with the 600+ horsepower drive unit. Triangulated supports tie suspension loads into the body structure, ensuring stiffness under cornering and acceleration forces.
Hyundai also integrates the wheel hub and half-shaft into a single unit—a departure from conventional serviceable designs. This move reduces part count and potential failure points, but limits the ability to service individual components. While some may critique this approach for compromising repairability, it aligns with Hyundai’s push toward modular, cost-efficient engineering.
Acoustic Enhancements and Emotional Appeal
Unique to the IONIQ 5 N is the addition of an external exhaust speaker, housed in a subwoofer-like enclosure. Though non-essential from a functional standpoint, it serves two purposes: creating a more emotionally engaging driving experience and meeting pedestrian safety requirements via external noise generation at low speeds.
This feature exemplifies Hyundai’s willingness to spend selectively in areas that enhance user perception and brand identity, even if they don’t contribute to performance or efficiency.
Structural Trade-offs and Mass Penalties
Weight begets weight—a fundamental truth in vehicle design. As performance features and battery capacity increase, so too does the mass of the supporting architecture. This cascading effect forces reinforcement across suspension, braking, and crash structures, all of which add cost and complexity.
Still, Hyundai manages to balance this by maintaining a high degree of component commonality across the E-GMP platform. That commonality enables economies of scale, which can offset the penalties of platform compromises like scar mass. For automakers designing a new EV platform, Hyundai’s experience offers a valuable case study in cost-performance trade-offs.
Conclusion: Smart Choices Within Constraints
The Hyundai IONIQ 5 N exemplifies what can be achieved when an OEM pushes the boundaries of a shared architecture. By selectively investing in key performance areas while retaining structural and component commonality, Hyundai delivers a high-performance EV without resorting to a clean-sheet design.
From the virtual ball lower suspension to the integrated wheel hub assembly, the IONIQ 5 N showcases clever engineering that balances lean design, serviceability, and driving dynamics. While not every decision favors ultimate efficiency, Hyundai’s willingness to experiment within platform limits deserves recognition.
