When Munro & Associates dissects an electric vehicle, it’s more than a teardown—it’s a full-scale engineering review. In our latest analysis, the Munro team walks through the inner workings of the Kia EV9’s battery pack. This teardown reveals not only the strengths of Kia’s 800V architecture but also the clever design decisions that balance cost, serviceability, and thermal performance.

For automotive engineers, EV investors, and performance-focused enthusiasts, understanding the EV9’s battery is a masterclass in lean design, tradeoffs, and pragmatic innovation.


The Core of the EV9: 800V Battery Architecture

The Kia EV9 utilizes an 800V system, with actual operating voltages ranging between 643V and 462V—well above the standard 400V systems found in many earlier EVs. This high-voltage approach enables greater efficiency, reduced current, and less copper usage for similar power delivery.

But what does this mean in practice? It means faster charging, thinner cables, and better thermal control potential. Unlike performance-centric implementations that simply exploit 800V for acceleration, Kia’s strategy is rooted in efficiency. That choice reflects a vision more aligned with long-range commuting and utility rather than high-performance driving.


Inside the Battery Pack: Modules and Layout

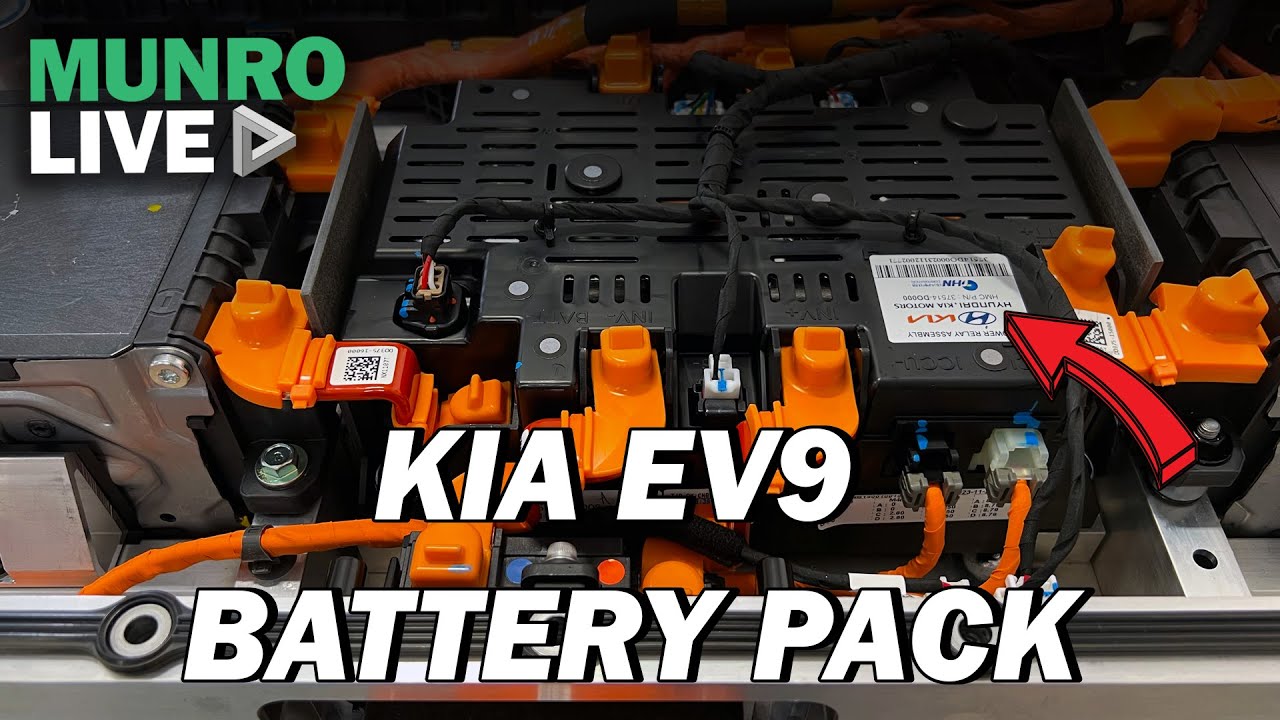

The EV9 pack contains 38 identical modules, each made of four groups of three cells—a configuration that results in the advertised 100 kWh capacity. These modules are connected in series using bright orange bus bars. The series configuration spans the entire pack and terminates at the switchgear assembly, where power transitions to the vehicle’s systems.

At the center of the battery’s communication ecosystem lies a network of Battery Management System (BMS) modules. Each module reports critical data—voltage, temperature, state-of-health—to a centralized Battery Management Unit (BMU) that determines charge and discharge behavior. Hyundai/Kia made these control modules serviceable without removing the battery, a major advantage for dealership maintenance.


Cooling Strategy: Simple, Smart, and Sufficient

Perhaps the most striking feature of the EV9 battery pack is its single cold plate cooling system. Instead of using multi-zoned or serpentine-style cooling lines, the EV9 opts for a single inlet and outlet connected to an aluminum plate forming the battery tray’s base. This dramatically reduces plumbing complexity, leak points, and weight.

But there’s a tradeoff. While elegant in simplicity, the thermal interface material (TIM)—a thick layer between cells and the cold plate—limits responsiveness. As our engineers at Munro point out, “the thicker the TIM, the less effective it is.” The cooling works, but not instantly. For applications like rapid acceleration or track use, this could be a constraint.

However, for Kia’s target audience—commuters and families—that’s not a limitation. It’s a deliberate compromise to reduce cost while ensuring durability and adequate thermal performance.


Material Engineering and Structural Design

Structurally, the EV9 battery tray is a welded aluminum enclosure with through-holes and perimeter bolts that mount it rigidly to the vehicle chassis. The underside features a composite layer, providing both thermal insulation and protection from road debris. This thermal barrier plays a crucial role in keeping ambient temperatures from disrupting cell behavior, particularly during cold-weather operation.

Above the modules, noise, vibration, and harshness (NVH) foam layers help keep squeaks and rattles at bay. While these may seem minor, such details impact the long-term perception of vehicle quality—especially in quiet EV cabins.


Serviceability and Maintenance

Only two components—the fuse and the battery management supervisor unit—are accessible without removing the entire pack. These components sit beneath access plates and represent the most likely failure or service points in the battery’s life cycle.

This level of foresight suggests a strong understanding of dealership needs and the long-term cost of ownership. By anticipating service bottlenecks and making critical parts accessible, Kia has engineered a practical balance between reliability and repairability.


Performance vs Practicality: Design Intent

What becomes clear through this teardown is Kia’s design intent: This battery wasn’t built for peak track-day performance—it was engineered for daily drivability, low cost, and reliability. The 800V system isn’t just a bragging point. It’s optimized to reduce material costs, improve efficiency, and extend range per kWh.

This is a rare approach. Many manufacturers have embraced 800V platforms but leveraged them mostly for acceleration and marketing. Kia, on the other hand, has leaned into the foundational advantages of high voltage: reduced resistance, minimized copper usage, and better system-wide thermal behavior.


Thermal Interface: Room for Improvement?

The thermal interface material (TIM) is the only point our Munro engineers critique strongly. Its excessive thickness undermines rapid heat transfer. While pouch cell designs often use bottom-edge cooling with thinner TIM layers, the EV9 relies on deep TIM zones to bridge gaps in module geometry.

This isn’t a flaw as much as a cost-optimized design decision. For vehicles that don’t require continuous high-performance cooling—like the EV9—it’s “good enough.” Still, Munro notes that reducing TIM thickness or optimizing its placement could yield faster thermal responsiveness and potentially better overall battery longevity.


A Word on Execution

The execution quality of the EV9 battery system is impressive for a high-volume product. Every module, vent, connector, and mounting point reveals thoughtful integration. As one member of the Munro team summarized it, “they deserve some kudos.”

The attention to venting systems (including Gore-Tex-style micro vents and pressure-release vents), NVH management, and cold weather insulation underscores Kia’s maturing EV strategy. This is no longer a brand chasing trends—it’s building them.


Takeaways for Engineers and Investors

For engineers, this teardown offers a case study in cost-performance balancing. The EV9’s battery pack shows how a well-engineered system doesn’t need to chase extremes to be effective. Strategic compromises—like single-channel cooling and thick TIM layers—enable low-cost, high-efficiency production at scale.

For investors and EV enthusiasts, this analysis signals a serious contender in the global EV race. Kia’s E-GMP platform continues to evolve smartly, leveraging its 800V backbone to meet market needs without unnecessary overengineering.
