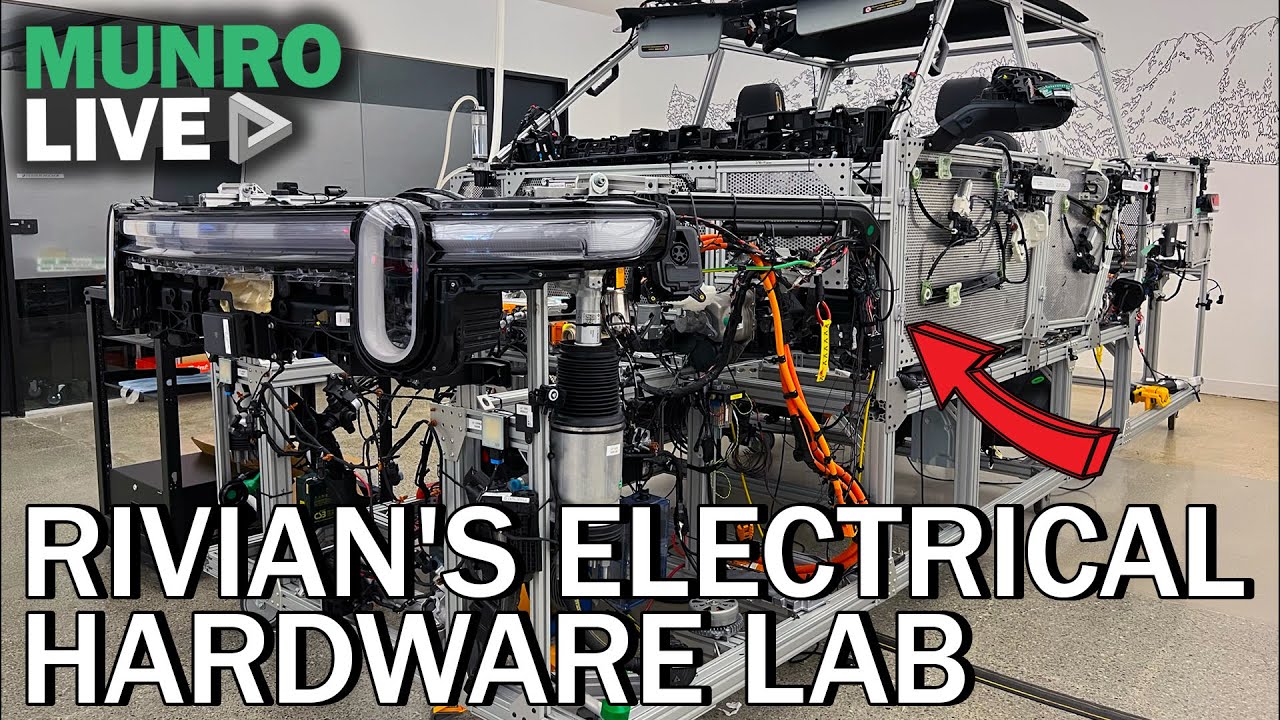

In the rapidly evolving EV landscape, innovation doesn’t stop at batteries or motors. A recent deep dive inside Rivian’s Palo Alto electrical hardware lab reveals an unsung hero of vehicle engineering: the company’s shift to a zonal control architecture. This change, led by Vidya Rajagopalan and her team, fundamentally reshapes Rivian’s low-voltage electrical system—cutting wiring, consolidating ECUs, reducing cost, and enhancing serviceability.
From Domain to Zonal: A Paradigm Shift
Rivian’s first-generation vehicles followed the typical domain-based control model, with 17 unique Electronic Control Units (ECUs) scattered throughout the vehicle, each dedicated to functions like thermal management, body control, or door modules. The result? A spaghetti-like network of 1.6 miles of wiring, heavy fuse boxes, and overlapping responsibilities.
Enter Gen 2.
The Rivian team condensed those 17 ECUs down to just seven—three of which are powerful zonal controllers dubbed West, East, and South. These handle all body and I/O functions within their assigned geographical “zone” of the vehicle, similar to how a local post office handles neighborhood deliveries. The zonal model localizes wiring, reduces signal run lengths, and slashes the need for duplication.
Wiring Weight: Down by 44 Pounds
This architectural overhaul didn’t just clean up the schematics—it carved serious weight out of the vehicle. By eliminating an entire dash harness and numerous distributed controllers, Rivian removed 44 pounds of wiring and control unit mass. That might not sound like much in isolation, but in automotive terms, shaving 20 kilos (about 44 lbs) is a significant win. Weight savings translate directly into efficiency, range, and lower cost of goods sold (COGS)—critical metrics in a fiercely competitive EV market.
And that’s just the beginning.
Consolidation Drives Reliability and Cost Savings
Wiring complexity is a hidden cost multiplier. More connectors mean more potential failure points. Each plug is a manual task on the assembly line—and a headache for diagnostics. By collapsing multiple ECUs into three zonal units, Rivian slashed those failure points while simplifying service.
Notably, the Gen 2 system also ditches bulky thermal fuses for e-fusing—solid-state circuit protection integrated directly into the PCB. That move alone eliminates numerous standalone components, improves response time, and reduces serviceable part count.
It’s lean design at its finest: remove parts, improve reliability, reduce complexity.
High-Powered Compute, Simplified Architecture
The zonal revamp was only part of Rivian’s Gen 2 leap. Equally notable is the centralization of ADAS (Advanced Driver Assistance Systems) and infotainment into a single, powerful compute platform. The new architecture features dual Nvidia Orin processors mounted on a symmetric, liquid-cooled board. Compared to Gen 1’s distributed compute model—spread across multiple ECUs including Mobileye and park-assist modules—this unified design offers higher compute density, redundancy, and simplicity.
And the heat? Managed through advanced thermal interface materials and internal fluid cooling channels. This board, rated at 250 watts, is now arguably the most powerful computer most Rivian owners will ever use—silently running AI models from the driveway.
Custom Cameras for Next-Gen ADAS
To feed this compute powerhouse, Rivian also upgraded its vision system. The Gen 2 platform features in-house developed, 8-megapixel cameras with enhanced low-light performance, high dynamic range (HDR), and LED flicker mitigation. That last feature is critical for reliably reading traffic signals—a common failure mode for lesser camera systems.
The result is a future-ready sensor stack, optimized for both current ADAS and upcoming autonomy features. While Tesla moved to a camera-only system, and others lean into lidar, Rivian takes a multimodal approach: five radars (four corner and one forward imaging) complement their vision system, offering robust redundancy across a variety of driving conditions.
Ethernet and 48V? Only Where It Matters
Unlike some competitors, Rivian hasn’t jumped wholesale into 48-volt systems or Ethernet-backboned designs. Why? Pragmatism. Ethernet, while high-bandwidth, isn’t a true bus topology and comes with cost and switching overhead. Similarly, 48V allows for thinner wires but demands dual-architecture support for legacy 12V components.
Rivian uses Ethernet strategically, only where bandwidth demands justify the cost. For simpler controls—think door handles—CAN and LIN remain more efficient choices. Likewise, 12V architecture still rules the day where current loads are modest and backward compatibility matters.
In-House Hardware, Outsourced Manufacturing
Another strength behind Rivian’s electrical evolution? They design all PCBs in-house. Rajagopalan’s teams in Palo Alto and Irvine create original schematics, selecting reference chips, creating custom layouts, and validating them against real-world loads. Contract manufacturers handle PCB fabrication and SMT assembly via “build to print” agreements. This allows Rivian to retain control over design quality while remaining scalable.
The same approach applies to their camera modules. While Rivian doesn’t fabricate the sensors themselves, they fully spec and validate custom modules under license—delivering higher performance without reinventing the wheel.
Dash Harness: A Case Study in Engineering Pain
Perhaps nothing illustrates Rivian’s success more dramatically than the dash harness. In Gen 1, it was a back-breaking, knotted mess of copper—an installation nightmare for factory workers. Engineers hated it. Assemblers dreaded it. Every extra inch of harness was a chance for delay, error, or injury.
In Gen 2? It’s gone.
The change isn’t just ergonomic—it’s a bottom-line gain. Fewer labor hours, fewer misplugs, fewer warranty calls. As Rajagopalan notes, “Every one of these wires is a failure point.” The zonal system turned that insight into action.
Looking Forward: Zip Codes and Clean Design
Rivian now thinks in “zip codes.” With zonal control, each physical region of the vehicle is its own addressable system. Engineers can optimize locally instead of endlessly rerouting wires across the car. The door harnesses are gone. The dashboard is cleaner. The entire platform is built for serviceability, modular upgrades, and future software-defined features.
It’s not just smart—it’s scalable.
Final Thoughts: A Masterclass in Lean EV Engineering
The takeaway? Rivian’s electrical overhaul is a masterclass in lean design. By shifting from domain-based architecture to zonal control, they eliminated redundancies, improved reliability, reduced cost, and increased future flexibility.
For automotive engineers, EV investors, and lean design advocates, this is the blueprint of what next-gen platforms should look like: fewer ECUs, less copper, more intelligence.
