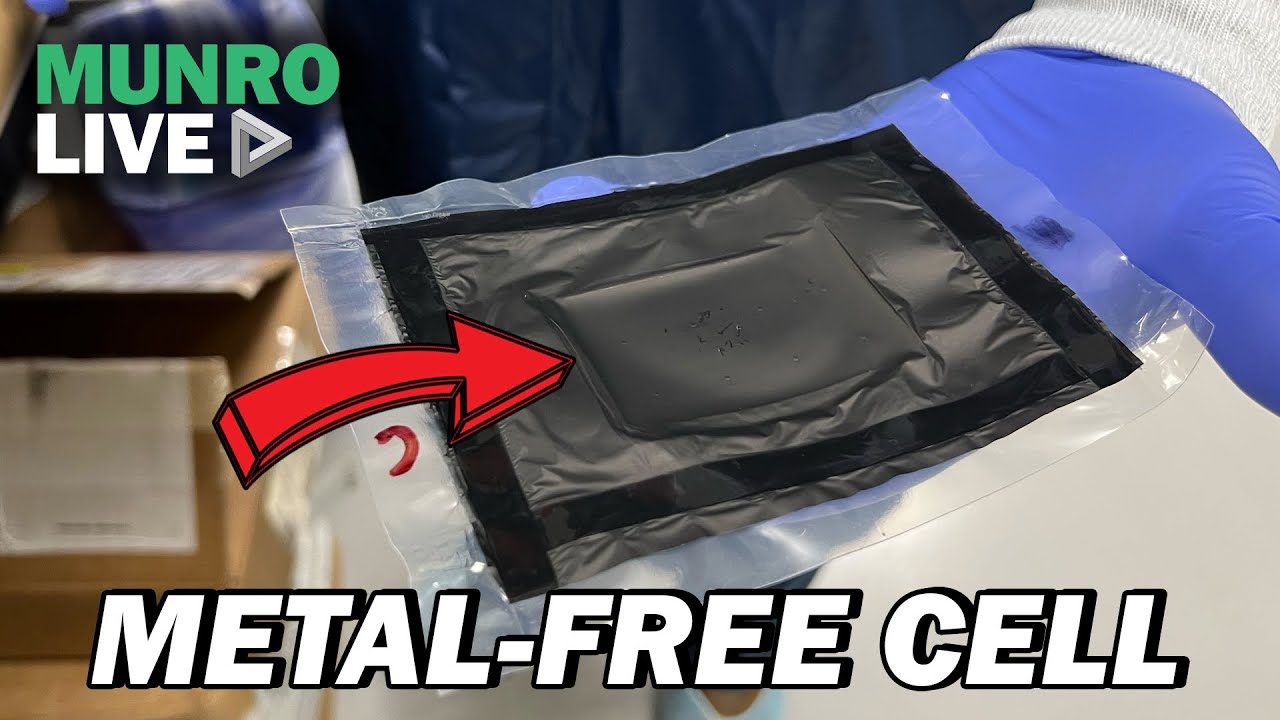

The race to advance battery technology has entered a new era with Sakuu’s groundbreaking metal-free battery innovation. Aimed at engineers and investors alike, this breakthrough promises to redefine cost, weight, safety, and energy density benchmarks across the electric vehicle sector. Munro & Associates recently had exclusive access to Sakuu’s revolutionary polymer-based battery cell, offering a deep teardown and technical analysis that spotlights the future of energy storage.
A Radical Departure from Traditional Battery Design
At the core of Sakuu’s innovation is the elimination of metals such as copper and aluminum traditionally used as current collectors inside battery cells. Instead, Sakuu utilizes polymer materials that reduce weight and cost while enhancing sustainability.
Typical battery designs rely on metal foils to conduct electricity efficiently. Sakuu’s approach leverages dry-printed layers of polymeric materials to replace these foils, resulting in a lighter, cheaper, and more easily recyclable battery. By eliminating metal tabs and traditional housings, Sakuu enables true bipolar stacking. Cells can be simply layered on top of one another to increase voltage without additional welding or heavy mechanical connections.
Performance and Safety: Beating the 4680 Benchmark
Sakuu’s metal-free cells were directly compared against Tesla’s 4680 cells, long considered a benchmark in advanced EV battery design:
This comparison highlights several key advantages:
- Energy density increases significantly (354 Wh/kg vs. 272 Wh/kg).
- Volumetric and gravimetric efficiencies provide tangible space and weight savings.
- Inherent safety is dramatically improved thanks to the adjustable conductivity of the polymer collectors.
Sakuu’s nail penetration tests demonstrated almost no temperature rise, even under puncture. Overall, an incredible achievement that addresses one of the biggest safety challenges in EV battery engineering.
Manufacturing Advantages: Dry Printing Revolution
Another leap forward is Sakuu’s dry printing process. Unlike conventional slurry-coated electrode manufacturing, Sakuu prints each battery layer in a dry format. This method delivers several critical benefits:
- Early Testing: Fully functional cells are available earlier in production, enabling quicker and more efficient quality control.
- Material Reusability: Dry processes allow for easier recycling of any lower-quality materials.
- Cost Reduction: Without slurry processes, solvent costs and drying energy needs are drastically cut.
Moreover, the dry printing method streamlines scaling, making it easier to rapidly adapt production lines to meet the rising demands for EV batteries without massive infrastructure investments.
Simplified Assembly and Packaging
Sakuu’s metal-free batteries eliminate the need for:
- Heavy metal housings
- Intricate tab welding
- Additional external supports
Cells act as both energy storage and structural elements. For example, stacking 200 Sakuu mono-cells within a 30mm box yields extremely high volumetric efficiency. Without metal canisters, additional packing, or wasted volume, manufacturers can achieve lighter and denser battery packs — critical factors for next-generation electric vehicles, drones, and lightweight robotics.
The bipolar stacking configuration also permits flexible voltage configurations, from small 30V assemblies to high-voltage 800V systems, simply by altering the number of cells stacked.
Cycle Life and Durability
While the specific Sakuu metal-free prototype cells have yet to achieve the full 1,000-cycle benchmark, existing Sakuu lithium-metal batteries already exceed 1,000 cycles with 80% energy retention, meeting stringent UN 38.3 certification standards. Given that the chemistry remains fundamentally similar, the company expresses high confidence that its new polymer-based cells will match or surpass this longevity after ongoing fine-tuning.
This level of durability, combined with reduced weight and built-in safety, presents a compelling opportunity for automotive OEMs seeking to deliver longer-lasting, more reliable EV products.
Cost Implications: A Clear Win
Removing metals like copper and aluminum, which can account for up to 10% of a battery’s bill of materials, enables cost reductions of around 7% at the cell level. Additionally:
- The cheaper polymer alternatives further drive down raw material expenses.
- Simplified manufacturing translates to lower capital investment.
- Eliminated housings and tabs reduce packaging and assembly costs.
The cumulative result? A battery cell that is not only technically superior but also more affordable to manufacture—a vital advantage in today’s fiercely competitive EV market.
Sakuu Battery Insights
For automotive engineers, the key takeaways from Sakuu’s breakthrough include:
- Design Freedom: No more constraints imposed by metal tab and housing architectures.
- Safety Enhancements: Built-in slow conductivity minimizes catastrophic failure risks.
- Manufacturing Efficiency: Faster production, less material waste, and lower costs.
- Scalability: Easily adaptable for different voltage and volume needs without redesign.
For investors and EV enthusiasts, Sakuu’s technology points toward:
- Higher-margin battery products.
- More competitive EV models due to reduced manufacturing and safety compliance costs.
- New potential for lightweight electric mobility solutions beyond traditional vehicles.
The Future of EV Batteries Looks Lighter, Safer, and Smarter
Sakuu’s metal-free battery technology represents a true leap forward—addressing the critical challenges of weight, safety, cost, and manufacturability that have long plagued EV design. As Munro’s analysis highlights, this isn’t just evolutionary; it’s revolutionary.
With tested prototypes already demonstrating outstanding safety and performance, and manufacturing processes ready for commercial scaling, Sakuu is poised to reshape the landscape of energy storage.
