Tesla Model Y Body-in-White Teardown: Engineering, Welding, and Material Insights

The Tesla Model Y body-in-white teardown from Munro is not just a visual spectacle of sparks and disassembly — it’s a deep engineering dive into how Tesla designs, welds, and assembles the structural backbone of its most popular crossover. For automotive engineers, EV enthusiasts, and industry investors, this teardown offers a unique view into the structural strategies, material choices, and manufacturing processes that define Tesla’s approach to crash safety, cost control, and manufacturability.

The Air Arc and the Art of Disassembly

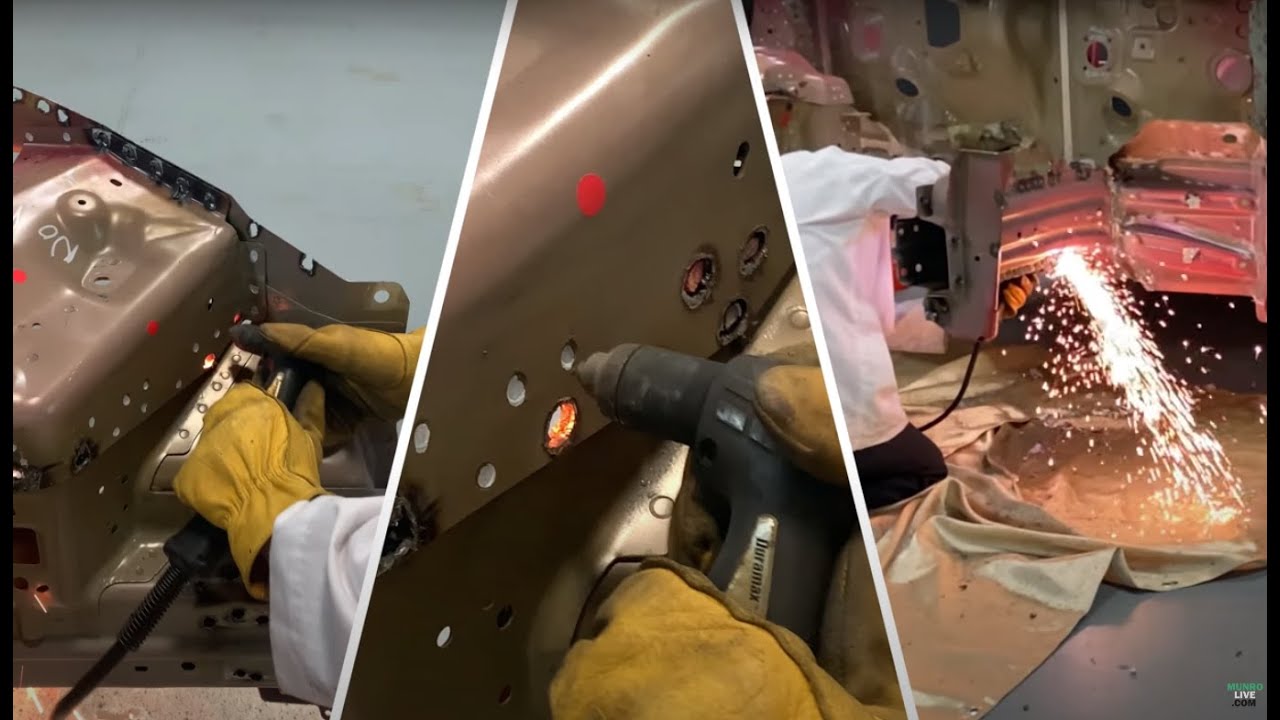

The process begins with an Air Arc — a plasma cutting tool designed to blow apart spot welds. Every white dot on the Model Y’s body represents a spot weld, and there are hundreds. By removing these welds, the Munro team exposes the internal substructures for weighing, cost analysis, and material identification. This is not just about dismantling a vehicle; it’s about revealing the layered thinking behind each weld location, each material selection, and each joining method.

Material Diversity in the Body-in-White

Tesla’s Model Y doesn’t rely on a single grade of steel. Instead, the body-in-white incorporates:

• 1020L mild steel for easily stamped panels

• Boron steel in high-stress, safety-critical zones

• Hot-stamped and cold-stamped steels for targeted strength

• High-strength and ultra-high-strength steel in crash load paths

This varied material mix allows Tesla to add strength where required — like in crash zones — while keeping weight low in less critical areas. It’s a design balancing act between mass efficiency, safety, and manufacturability.

The Body Engineer’s Crucial Role

As Sandy Munro notes, body engineers hold a unique place in automotive development. The body-in-white is the fixture on which every other component depends — misalignments or dimensional errors here cascade into assembly problems across the vehicle. That’s why body engineers tend to be among the most experienced in the field.

Their responsibilities extend beyond strength calculations. They must decide where and how to weld, how subassemblies will align on the production line, and how to integrate shimming — small adjustments in part placement to ensure water shedding, correct panel fit, and assembly efficiency.

Welding Complexity and Production Flow

The Model Y body demonstrates how welding is both an engineering and logistical challenge. For example, T3 joints — where three layers of material are welded together — require careful control of welding tips, clamping, and sequencing. Weld robots must coordinate their access with clamping fixtures, often cycling in and out to avoid collisions.

Every part is gauged before assembly to reduce variation, a critical factor in ensuring weld quality and overall body dimensional accuracy.

Surprising Findings: Aluminum Mass Damper

One standout discovery was an aluminum mass damper hidden within the “shotgun” structure at the front of the vehicle. Traditionally, mass dampers are made from dense materials like iron or lead for vibration control. Tesla’s choice of aluminum is unusual — lighter, more expensive, and less vibration-absorbent — suggesting that packaging, corrosion resistance, or other design considerations may have influenced the decision.

Structural Doublers and Crash Protection

The teardown also revealed structural doublers in the longitudinals and on top of the crush cans. These reinforcement layers add rigidity where finite element analysis (FEA) predicts high stresses in a crash. In a frontal impact, these reinforced areas help control deformation, keeping the passenger cell intact.

The shock tower brace is another example of overbuilt strength. Twice as thick as the surrounding sheet metal, it’s joined with numerous spot welds for maximum rigidity. While likely mild steel, its robust construction plays a key role in suspension load management and crash energy distribution.

Manufacturing Efficiency: Toy Tabs and Assembly Order

Tesla’s engineers incorporate assembly-friendly features like toy tabs — hooks or lanced tabs that hold parts in place during welding. While some tabs are welded on, punching and lancing them directly from the panel can reduce part count and cost.

The assembly sequence is critical. For example, the shotgun outer panel is installed only after internal structures are welded and bolted in place. This ensures weld accessibility while maintaining structural integration.

The Symphony of the Body Shop

When executed well, body-in-white assembly is like a choreographed performance — robots and fixtures moving in precise harmony, clamps releasing and closing as weld guns sweep in. For those unfamiliar with automotive manufacturing, watching a body shop in action can be as mesmerizing as it is technically impressive.

Why This Matters

A body-in-white teardown like this provides direct insight into Tesla’s engineering priorities:

• Safety — through strategically reinforced crash zones

• Efficiency — by balancing high-strength materials with lighter steels

• Manufacturability — with thoughtful weld access, shimming, and assembly sequencing

• Innovation — as shown in unconventional choices like aluminum mass dampers

For engineers, these details inform design decisions in future projects. For investors, they reveal the underlying cost structures and competitive advantages that drive Tesla’s margins.

Tesla Model Y Body Teardown Takeaways

1. Material diversity is intentional — it’s about performance and cost, not just strength.

2. Weld sequencing and access drive production feasibility — body design must serve both structural and manufacturing needs.

3. FEA informs reinforcement placement long before prototypes exist, reducing trial-and-error in crash safety.

4. Assembly-friendly features like toy tabs streamline production and reduce errors.

Conclusion: Beyond the Sparks

Munro’s teardown of the Tesla Model Y body-in-white goes far deeper than cutting through welds — it’s an exploration of how design, manufacturing, and safety engineering intersect in a modern EV. From thick shock tower braces to aluminum dampers, from weld access planning to crash reinforcement strategy, every choice reflects tradeoffs between performance, cost, and manufacturability.

Tesla’s approach continues to evolve, and each teardown provides valuable lessons for engineers, suppliers, and competitors. For anyone serious about understanding EV manufacturing at the structural level, this is essential viewing — and a reminder that in automotive engineering, the body really is everything.
