When the Munro team tears into a Tesla, they don’t just pull panels — they uncover the story written in steel, aluminum, and adhesive. The latest Tesla Model Y body structure teardown is no exception. Beneath its sleek exterior lies a carefully orchestrated blend of hot stamped steel for strength, lightweight aluminum for balance, and precision joining methods like self-piercing rivets and laser-cut welds. Every choice, from tailored blanks to structural adhesives, serves a purpose — to boost crashworthiness, streamline manufacturing, and fine-tune the ride. This isn’t just engineering; it’s Tesla’s evolving blueprint for building lighter, stronger, and smarter electric vehicles.
Class A Stamping for Exterior Quality
The Model Y’s body side aperture — also called the laydown body side ring — is a single, massive stamping of steel. Classified as a Class A surface, it must meet the highest standards for visible exterior panels. Class A stamping tolerates no blemishes, with particular attention to complex areas prone to defects such as “bird beaks” where angles converge. While some automakers use tailor-welded blanks in these panels, Tesla opts for a single-piece design, simplifying manufacturing and reducing weld lines that could affect surface quality.
Bolt-Only Mounting and Weld Spot Spacing
In areas like the “shotgun” structure, Tesla uses bolts rather than spot welds. This choice stems from access limitations — welding guns can’t reach these locations — and results in a clean, serviceable attachment. Foam inserts behind these bolted sections reduce squeaks and rattles, enhancing NVH (noise, vibration, and harshness) performance.
Interestingly, weld spot spacing in certain areas is wider than industry norms. Tesla spaces some welds at approximately 120 millimeters, a choice that reduces manufacturing time and cost without compromising structural performance.
Multi-Layer Welds and Hot Stamped Steel
In structural sections, Tesla layers multiple sheets of steel, creating T2 and T3 welds where two or three sheets are joined. This approach increases rigidity in key load paths. The Model Y uses hot stamped steel extensively — a high-strength material that allows thinner sections without sacrificing crash performance. Its higher hardness and distinctive color make it visually distinct from mild steel in the teardown.
Tailor Welded Blanks and Laser Cutting
Tesla employs tailor-welded blanks — sheets of different thicknesses or grades of steel laser welded together — in areas where local reinforcement is needed. Laser cutting provides precise apertures, even in less common locations like the roof glass opening. This attention to detail improves assembly accuracy and fit.
Slip Planes and Net Holes for Precise Assembly
Slip planes and net holes ensure the body structure assembles consistently within tight tolerances. Net holes serve as locators, aligning parts before welding or riveting. This approach prevents stacking tolerances from compromising structural integrity.
Transitioning from Steel to Aluminum

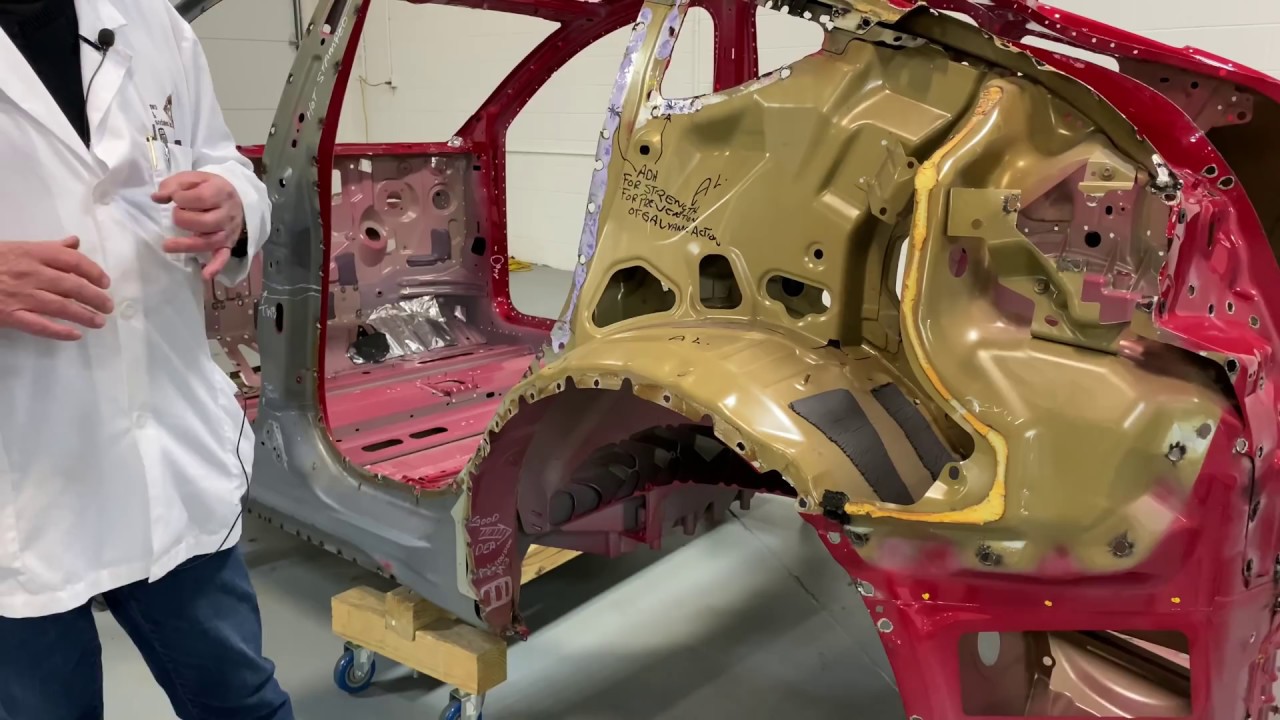

One hallmark of the Model Y body design is the transition from hot stamped steel and mild steel to aluminum in the rear section. Aluminum reduces rear mass, balancing the vehicle without a front-mounted engine. This shift also supports global stiffness — ensuring consistent rigidity across the entire chassis.
To join dissimilar metals, Tesla uses self-piercing rivets (SPR) combined with structural adhesives. SPRs, pioneered by companies like Henrob, mechanically lock materials together without pre-drilled holes. Adhesives add strength and, importantly, prevent galvanic corrosion between steel and aluminum.
Structural Adhesives for Corrosion Prevention
When aluminum contacts steel, galvanic action — similar to rust — can occur. Tesla applies structural adhesives between materials to electrically isolate them, preventing degradation over time. These adhesives also contribute to crash energy absorption and joint stiffness.
The C Aperture and Localized Strength
The C aperture, running from the C-pillar toward the vehicle center, plays a critical role in crashworthiness and handling. It resists “breathing” — unwanted flex under load — especially from suspension forces. Localized reinforcement in this area improves rollover protection, rear impact resistance, and ride quality.
Weight Optimization and Ride Quality
Tesla’s choice to lighten the rear structure with aluminum while reinforcing high-load areas demonstrates a balanced approach to structural engineering. The result is a body that is not only lighter but also stiffer, enhancing both efficiency and driver confidence.
Advancements Over the Model 3
Compared to the Model 3, the Model Y’s body structure shows clear evolution. Material use is more strategic, joining techniques are refined, and the overall body is stronger without unnecessary weight. These changes highlight Tesla’s ability to iterate quickly, applying lessons from earlier platforms to deliver better structural performance.
Tesla Model Y Body Structure Takeaways
-
Material Strategy — Combining hot stamped steel for strength with aluminum for weight reduction creates an optimal balance.
-
Joining Technology — Self-piercing rivets and adhesives enable multi-material construction without corrosion risk.
-
Manufacturing Precision — Laser cutting, tailor-welded blanks, and net holes ensure consistent assembly.
-
Performance Benefits — Enhanced global stiffness improves safety, handling, and NVH.
Why This Matters
The Model Y’s body structure illustrates how EV manufacturers can leverage mixed materials and advanced joining techniques to meet demanding safety, weight, and performance goals. For engineers, this teardown is a practical study in applying lean manufacturing principles to structural design. For enthusiasts and investors, it shows how Tesla continues to refine its vehicles beyond just powertrain innovation.
