Injection-Molded Innovation: Comparing the Tesla Model Y Headliner to the Model 3

In the world of automotive engineering, every component matters. Even something as seemingly mundane as a headliner—the interior roof panel—can reveal game-changing insights into cost, complexity, safety, and noise control. In a recent teardown, the Munro team examined the Tesla Model Y‘s headliner design, comparing it directly with its Model 3 counterpart. What they uncovered speaks volumes about Tesla’s evolving approach to lean manufacturing, crash safety integration, and NVH (Noise, Vibration, and Harshness) optimization.

This article breaks down the core findings, highlighting how the Model Y’s injection-molded headliner sets a new benchmark in electric vehicle interior design.

Model 3: Conventional Construction with Premium Touches

The Model 3 features a traditional thermal set, long-glass-fiber headliner. This type of construction—common in the industry—is made by shaping heated resin-impregnated fiberglass into a mold. It results in a lightweight, semi-flexible panel that serves the functional and aesthetic purpose of lining the vehicle’s ceiling.

One standout feature in the Model 3 is the use of Alcantara, a premium synthetic suede. While luxurious, Alcantara adds significant cost without necessarily enhancing functionality, especially in areas not frequently touched by occupants. The Model 3 also relies heavily on adhesives for part integration, including aluminum extrusions for head impact countermeasures and speaker attachments.

From a manufacturing standpoint, glue-heavy assembly slows down production and complicates repairs. Yet it’s an established method that fits traditional assembly paradigms.

Model Y: A Radical Shift to Injection Molding

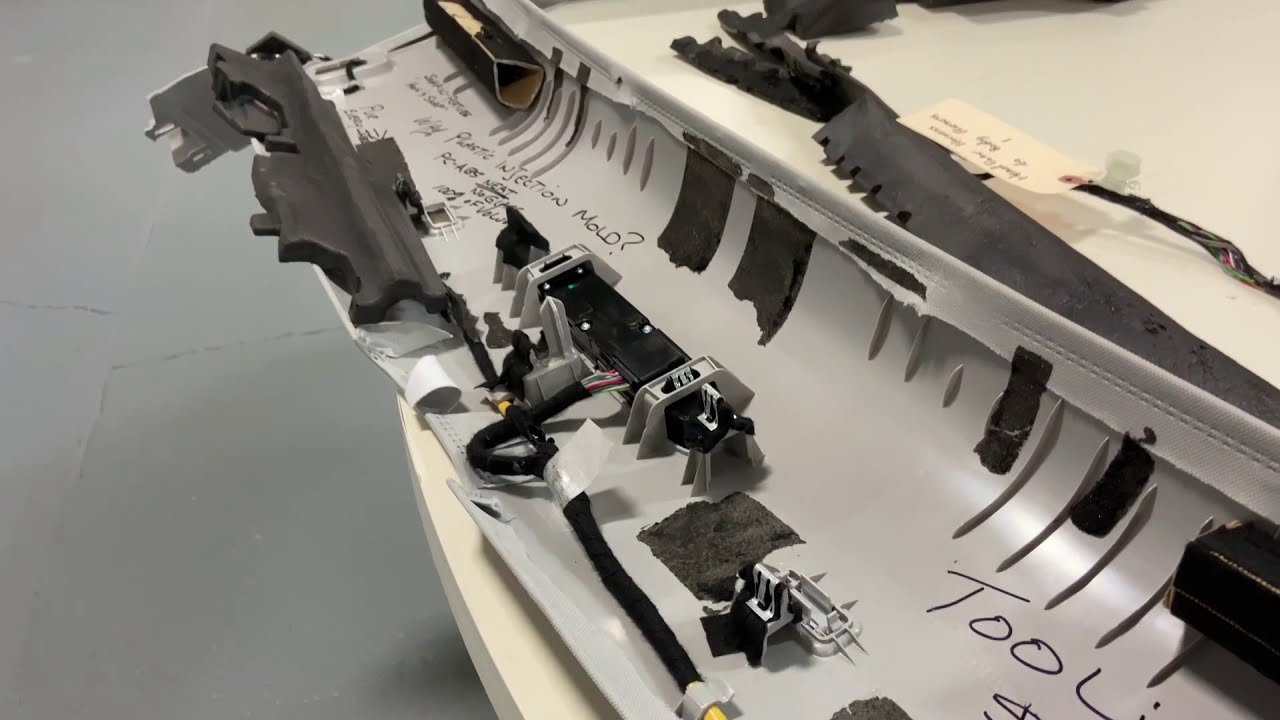

Tesla completely reimagines the headliner in the Model Y. Departing from industry norms, Tesla engineers implemented a two-piece PC-ABS (polycarbonate–acrylonitrile butadiene styrene) injection-molded structure—something Munro & Associates had never seen before in over 30 years of teardowns.

This innovation offers several advantages:

Integrated Features: Molded-in risers and mounting bosses simplify hardware attachment. For example, speaker mounts now sit directly on raised plastic tabs, eliminating the need for adhesive patches.
Precision Fitment: The headliner’s geometry includes snap-fits and hooks—Munro’s favorite combination—for consistent placement without rattle.
Operator Efficiency: These snap designs reduce human error and boost line speed, cutting costs long-term.
Crash Safety: Integrated tether points are molded into the join line between the two halves of the headliner. In the event of a collision, these tethers prevent detached interior components from striking occupants.

Thermal Management and NVH: A New Layer of Thought

The Model Y also features extensive use of PUR (polyurethane) foam—more than the teardown team had ever seen in a single headliner. This material helps dampen road noise and vibrations while offering thermal insulation and a more composed ride.

Additionally, the headliner includes a novel heat-staked cloth wrap, offering a less expensive but more serviceable alternative to Alcantara. Heat staking bonds fabric tightly and securely to the molded surface, allowing for durability without adhesives.

From a lean design perspective, every element—form, function, and fastener—has been evaluated for cost reduction and performance gain.

Engineering the Little Things: From Sun Visors to Troughs

Even the sun visor tells a story of innovation. The Model 3 uses a snap-fit bracket to hold the visor in place. In the Model Y, Tesla introduces a magnet-based retention system—simpler and more elegant, reducing parts and improving user experience.

Not all changes were flawless, however. During the teardown, Munro’s team uncovered questionable execution in the wire trough modifications near the B pillar. Evidence suggested that sections were cut post-assembly—possibly using a Dremel tool—while the wiring harness was already in place. The result was rough cuts, misplaced routing, and reliance on tape to secure critical pathways.

While speculative, this raised concerns about post-production fixes or rushed assembly decisions—a rare blemish in an otherwise thoughtful design.

B Pillar Integration: NVH and Sealing Enhancements

The B pillar area of the Model Y also includes improvements. Enhanced foam padding contributes to NVH performance and sealing effectiveness—an important detail in electric vehicles where wind and road noise are more perceptible in the absence of an engine.

This refinement complements Tesla’s broader push toward reducing cabin intrusion and improving occupant comfort.

Broader Takeaways: Cost vs Quality Tradeoffs

The evolution from the Model 3 to the Model Y illustrates Tesla’s shift from luxury-like flourishes toward manufacturable efficiency. Replacing expensive materials like Alcantara with cost-effective wraps, reducing adhesives in favor of snap-fit design, and integrating headliner safety systems directly into molded parts show a maturing design philosophy.

Tesla continues to push the boundaries of how electric vehicles are built. Every component, even a headliner, is an opportunity to rethink assumptions, streamline processes, and enhance safety—all while keeping costs in check.

Why It Matters: Lessons for Engineers and OEMs

For automotive engineers and industry stakeholders, the Model Y headliner teardown offers critical insights:

Injection Molding at Scale
The use of PC-ABS in a structural interior panel is pioneering. While tooling and machine size present challenges, the integration benefits are clear—especially in volume manufacturing.
Snap-Fit Design Philosophy
Simplifying installation via molded features and snap fits improves production speed and quality assurance.
NVH Optimization Through Material Choices
Tesla’s aggressive use of PUR foam and cloth wraps highlights a cost-conscious yet effective approach to noise suppression and passenger comfort.
Modularity and Safety
Integrated tethers and structured partitions support crash safety while simplifying assembly—a win-win in both engineering and compliance.
Beware Rushed Modifications
The wire trough issue serves as a cautionary tale about late-stage changes or manual rework. These shortcuts can undermine the reliability gains from lean design elsewhere.

Conclusion: Tesla’s Interior Teardown Philosophy Evolves

Munro’s deep dive into the Model Y headliner compared to the Model 3 reveals Tesla’s continued pursuit of lean design, performance, and cost reduction. The shift to injection-molded PC-ABS, clever snap-fit engineering, and NVH-aware material use elevates the headliner from a passive surface to a critical systems component.

As EV design matures, more OEMs will likely follow Tesla’s lead—rethinking conventional interior builds and embracing function-driven innovation. Teardowns like this aren’t just curiosity exercises—they are roadmaps for what’s next.
