The Tesla Model Y Octovalve represents a leap forward in electric vehicle thermal management — combining multiple coolant flow functions into a single, compact unit. In a recent Munro & Associates teardown, the team examined its intricate design, highlighting engineering choices that optimize performance, manufacturability, and serviceability.
For automotive engineers, EV enthusiasts, and industry investors, this analysis offers a rare look at how Tesla’s heat pump system achieves efficiency gains through part consolidation and advanced manufacturing processes.
From Coolant Manifold to Octovalve
The system begins with the coolant manifold, constructed from molded nylon. It consists of 11 separate pieces with 21 ports, hot plate welded into the base. Threaded and crush inserts are used strategically to prevent plastic breakage, allowing for secure mounting and long-term durability. This multi-component approach avoids die lock — a molding constraint where certain features make part ejection impossible without complex tooling slides or lifters.
While Tesla’s method is well-suited for the Model Y’s production volumes, Munro notes that alternative manufacturing methods exist. For example, BMW’s 1999 award-winning intake manifold used lost core technology to integrate complex internal features without separate glued components. However, that method is more viable for lower production volumes, such as the V6 engine it served.
Inside the Octovalve
At the heart of the system is the Octovalve itself — named for its eight channels that direct coolant flow to various parts of the heat pump system. Under its emblem lies a four-position stepper motor that adjusts valve position based on cooling or heating demands. This integration replaces multiple discrete valves, reducing part count, weight, and potential leak points.
Munro praised the design as “genius” for its functional consolidation, a hallmark of Tesla’s engineering approach. By packaging multiple bypass and flow-control functions into a single housing, Tesla achieves both performance and cost benefits.
The Aluminum Base Manifold

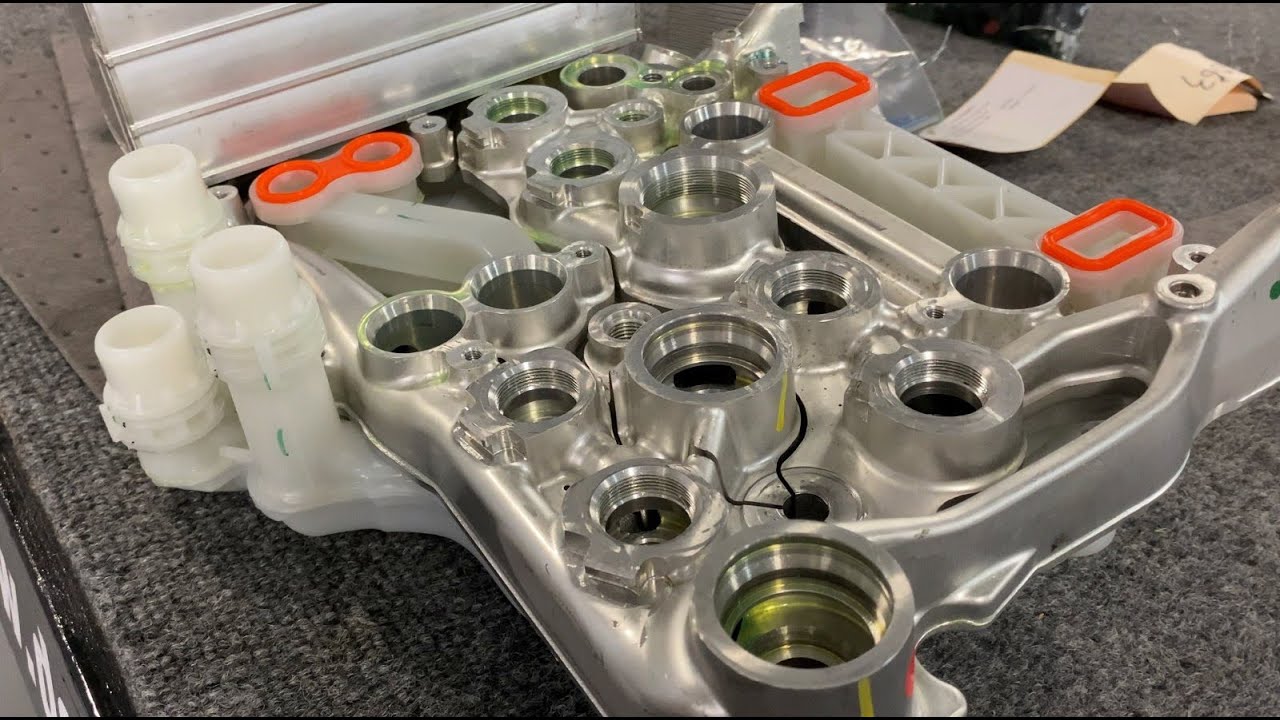

The base manifold — reportedly interesting enough for Elon Musk to keep on his desk — is made from semi-solid forged aluminum. This process, akin to shaping semi-hard butter, creates a part with excellent mechanical properties and minimal porosity. After forging, machining operations ensure precise tolerances so the plastic manifold mates perfectly without leaks. The backside is sealed with a brazed plate, while additional ports and components are welded on during later assembly.
Tesla also employs EDM (Electric Discharge Machining) to create complex internal passages. This is critical because the manifold must tolerate both hot and cold zones simultaneously without distortion or cracking. The result is a robust, leak-resistant component that can withstand thermal cycling over the vehicle’s lifespan.
Compact Integration
When assembled, the aluminum and plastic manifolds align seamlessly — described as fitting “like a glove.” This compact packaging allows for shorter coolant pathways, improving thermal response and reducing system complexity. The integration supports Tesla’s broader lean design philosophy: fewer parts, fewer joints, less potential for failure.
Supporting Components
Beyond the Octovalve and manifolds, the heat pump system includes:
-
Accumulator — Brazed onto the aluminum base, with friction stir welding for added structural integrity.
-
Chiller assembly — Interfaces between the refrigerant circuit and coolant loop.
-
LCC assembly — Another key subcomponent for managing heat exchange.
Notably, Tesla uses laser-etched labels — including 3D barcodes — on some parts, a method the teardown noted as more durable than paper labels. While one paper label indicated assembly in Mexico, many of the laser-marked parts were identified as coming from Chinese suppliers.
Aerospace-Level Design Thinking
Munro observed that the Octovalve’s design philosophy is closer to aerospace fuel systems or transmission control units than to traditional automotive cooling circuits. The emphasis is on precision, functional integration, and adaptability to varying thermal demands — a contrast to the segmented, single-purpose components typical in legacy OEM designs.
This approach yields tangible benefits:
-
Improved efficiency — A single valve assembly controls multiple flow paths without redundant hardware.
-
Reduced mass — Fewer parts and shorter coolant runs lower weight.
-
Manufacturing simplicity — Semi-solid forging and modular assembly streamline production.
-
Serviceability — Fewer joints and tight manufacturing tolerances reduce the likelihood of leaks.
Market Implications
For OEMs and Tier 1 suppliers, Tesla’s Octovalve serves as a case study in thermal system integration. As EV adoption accelerates, efficient thermal management will remain critical — affecting range, charging performance, and component longevity. The ability to consolidate functionality, reduce manufacturing steps, and ensure long-term reliability offers a competitive advantage.
Munro & Associates is positioning the Octovalve teardown as a standalone report, targeting suppliers interested in replicating or improving upon Tesla’s design. The team also plans additional testing on a second vehicle, with results likely to inform further engineering insights.
Tesla Model Y Octovalve Takeaways
-
Leverage part consolidation — Multi-function components can significantly reduce part count, weight, and leak risk.
-
Explore semi-solid forging — This process delivers high-strength aluminum parts with excellent machinability and low porosity.
-
Design for thermal cycling — Materials and assembly methods must tolerate rapid shifts between hot and cold.
-
Adopt aerospace manufacturing practices — Techniques like EDM machining and brazed assemblies can elevate performance in high-demand applications.
-
Invest in durable labeling — Laser-etched part identification ensures traceability over the product’s lifespan.
Conclusion
The Tesla Model Y Octovalve exemplifies how innovative engineering and manufacturing integration can redefine EV thermal management. Through smart use of materials, precise machining, and functional consolidation, Tesla delivers a compact, efficient system that meets both performance and manufacturing goals. For the automotive industry, it’s a blueprint worth studying — and a reminder that competitive advantage often comes from rethinking the fundamentals.
Munro & Associates’ detailed teardown provides OEMs, suppliers, and engineers with an inside look at these design strategies. As the EV market matures, adopting such integrated approaches could be the key to producing vehicles that are not only efficient and reliable but also economically viable at scale.
