The Toyota Grand Highlander Hybrid has quickly become a standout in the three-row SUV market—offering the spacious comfort families demand with the fuel efficiency of a four-cylinder hybrid system. In this recent teardown by Munro & Associates, we guide readers through the vehicle’s hybrid drivetrain, highlighting Toyota’s precise engineering choices. This article expands on the key insights from that teardown, showcasing why the Toyota Grand Highlander hybrid system is a benchmark in cost-effective, scalable electrification.
Compact Battery, Smart Deployment
Beneath the rear seat of the Grand Highlander lies its hybrid battery—compact in form but purposeful in function. Rated at only 1 kWh, the battery isn’t designed for long-range EV driving. Instead, it’s a power buffer that supports regenerative braking and boost during acceleration.
Unlike plug-in hybrids or BEVs, this configuration doesn’t allow for electric-only driving beyond low speeds. As soon as the vehicle hits around 30 mph, the internal combustion engine kicks in. The battery’s job is to assist in high-load situations and to absorb energy during braking, improving system efficiency and responsiveness.
Toyota’s choice of a small, air-cooled battery emphasizes its design priorities: low weight, minimal complexity, and reduced system cost. This makes the hybrid system more scalable across Toyota’s lineup without major reengineering—supporting lean manufacturing and flexible platform development.
Rear Drive Unit: Simplified All-Wheel Drive
Toyota’s approach to all-wheel drive (AWD) in the Grand Highlander hybrid is equally minimalist—and brilliant. An electric motor powers the rear axle, creating an on-demand e-AWD system that avoids the complexity of traditional AWD drivetrains.
What’s especially remarkable is the absence of any active cooling for the rear motor. There’s no oil circuit. No water cooling. No thermal plumbing of any kind.
This simplification is made possible by two design principles:
-
Efficient Motor Design: The motor is engineered to generate minimal heat, thanks to high energy conversion efficiency and conservative usage patterns.
-
Intermittent Duty Cycle: Toyota only engages the rear motor when traction demands it—during hard acceleration or when detecting wheel slip.
This ensures the motor doesn’t overheat, eliminating the need for costly cooling infrastructure. It’s another example of Toyota’s philosophy of giving customers exactly what they need—without overengineering.
Front Powertrain: Hybrid Synergy Drive in Action

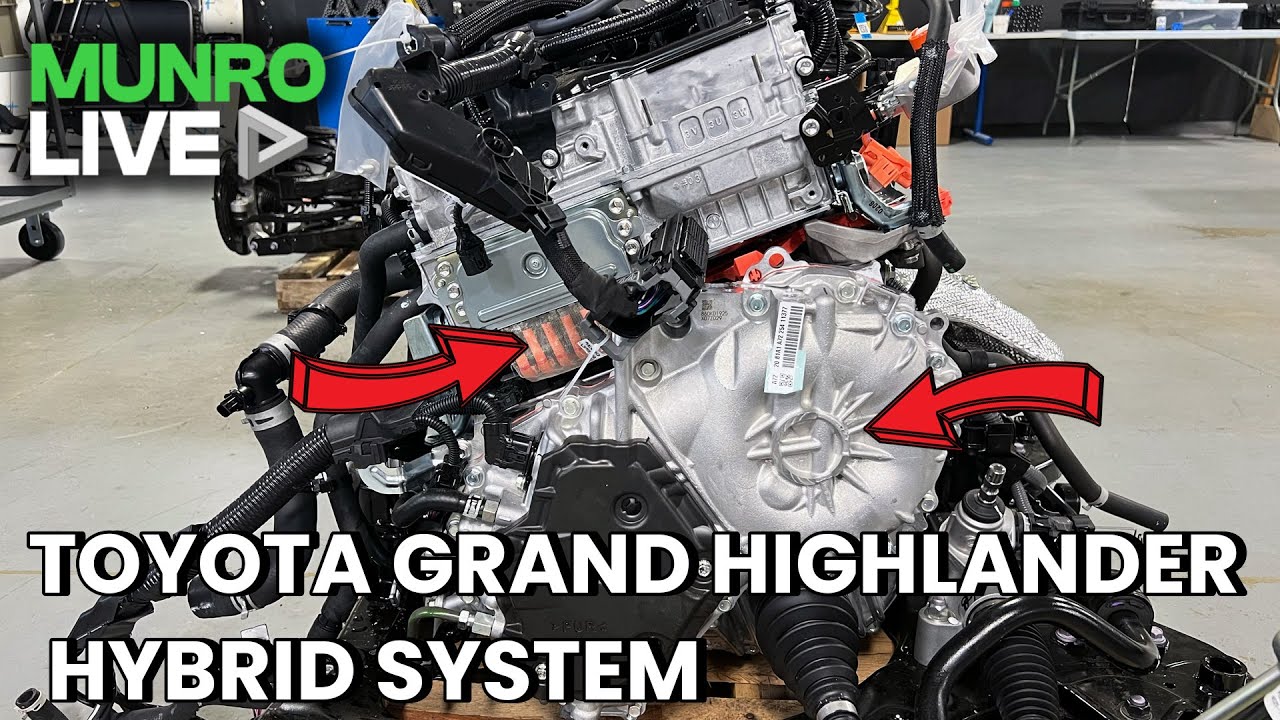

Under the hood, the Grand Highlander carries Toyota’s proven Hybrid Synergy Drive system—a blend of a four-cylinder gasoline engine and two electric motors embedded in the transmission housing.
These motors, labeled the A motor and B motor, handle multiple roles:
-
The A motor provides torque assist to the wheels and simulates the performance of a V6 engine, while maintaining the fuel efficiency of a four-cylinder. This motor is responsible for much of the “hybrid feel” during acceleration.
-
The B motor supports generation and engine management, helping keep the engine in its most efficient RPM range.
Together, these motors work as part of an electronic continuously variable transmission (eCVT). Unlike mechanical CVTs, Toyota’s system uses the motors to vary the gear ratio electronically—keeping the engine running at peak thermal efficiency regardless of driving conditions.
This sophisticated orchestration between engine and motors is controlled by two inverters and a suite of power electronics packed into a single compact unit sitting above the transmission. Six high-voltage wires feed the motors, governed by these integrated power modules.
The compact packaging of the drivetrain—engine, motors, inverters, and electronics—all within the engine bay reduces wiring, cooling needs, and component sprawl. This improves serviceability, cuts costs, and enhances durability.
Lessons in Lean Engineering
The Grand Highlander hybrid system isn’t flashy. It doesn’t boast oversized batteries or overkill horsepower figures. Instead, it’s a masterclass in functional, efficient engineering—optimized to deliver value, not just specs.
Toyota leans on its two decades of hybrid experience to minimize costs while still delivering a superior driving experience. The vehicle offers:
-
Instant torque from electric motors
-
Fuel economy far exceeding comparable V6 SUVs
-
All-wheel drive capability with zero mechanical linkages
-
Lower long-term maintenance due to fewer wear components
By packaging power intelligently and activating systems only when necessary, Toyota reduces thermal load, extends component life, and simplifies production. It’s the kind of holistic design approach that other automakers—especially newcomers in the EV space—would do well to study.
Hybrid Without the Hype
While many automakers chase range, performance, or marketing flash, Toyota focuses on the bottom line: value for the customer and profit for the manufacturer. Their hybrid system in the Grand Highlander is a study in what happens when you let real-world use cases—not spec sheets—drive design.
From a teardown perspective, the Munro team makes clear that Toyota hasn’t just iterated on hybrid design—they’ve systematized it. Every design choice speaks to years of refinement, field data, and cost modeling. The absence of unnecessary cooling loops or oversized batteries reflects confidence built over decades.
For engineers, this system offers a rich case study in component synergy, thermal management, and platform integration. For investors, it shows why Toyota remains one of the few automakers profiting from electrification. And for enthusiasts, it delivers a driving experience that feels stronger than the numbers suggest—proving that smart engineering can outperform brute force.
Takeaways for the Industry
-
Don’t overbuild. Toyota shows that minimal, efficient systems can deliver strong performance when thoughtfully integrated.
-
Modular hybrid components allow flexibility across platforms and markets.
-
Thermal management through usage patterns can eliminate the need for costly cooling in secondary systems.
-
Small battery systems, when properly supported, can still provide real-world fuel savings and performance enhancements.
-
Simplicity scales. Toyota’s system is easy to replicate across models, making it cost-effective for both OEMs and consumers.
Final Thoughts
The Toyota Grand Highlander hybrid system reflects a philosophy that’s both timeless and timely—give customers exactly what they need, no more and no less. By doing so, Toyota has created a hybrid SUV that blends efficiency, power, and affordability in a package that makes sense for families and fleets alike.
For automakers navigating the complexity of electrification, Toyota’s teardown reveals a clear path: simplicity, efficiency, and profit. And for those seeking to understand what great hybrid engineering looks like—Munro’s analysis of the Grand Highlander is required viewing.
